Product Details:

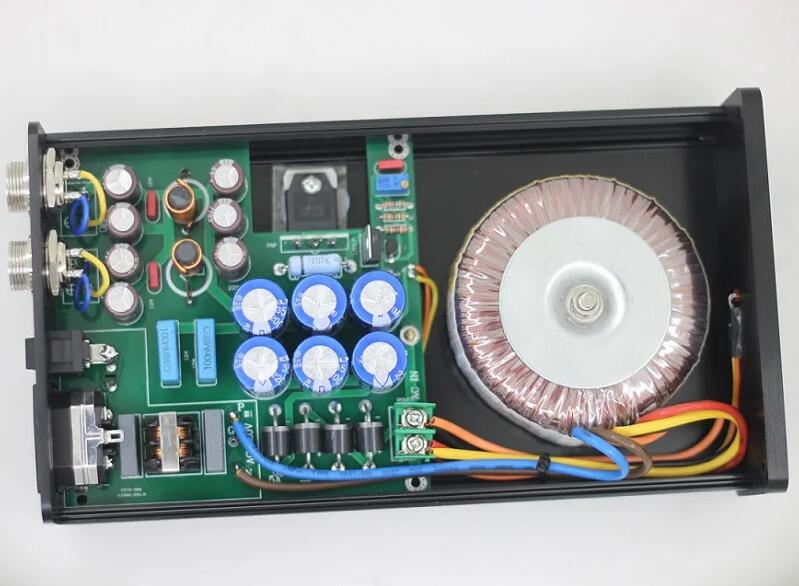

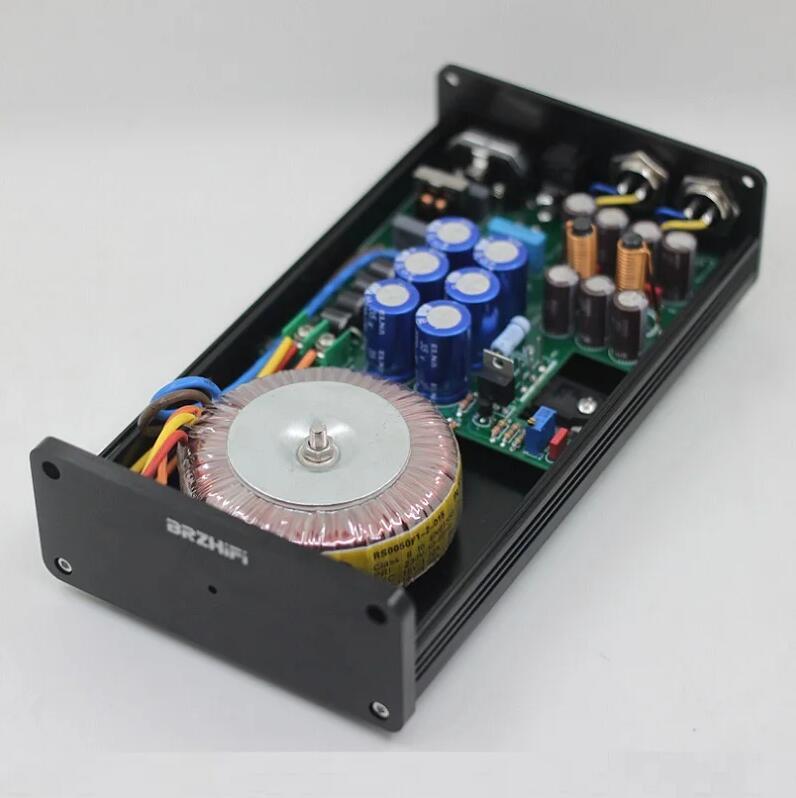

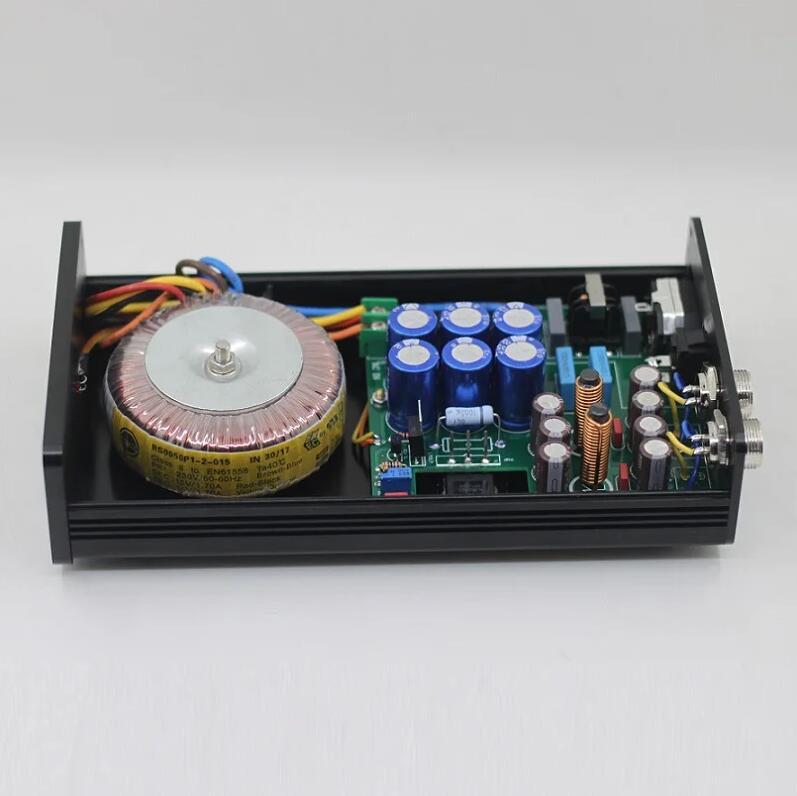

Using 50W hi-end toroidal transformer.
With Pure oxygen-free copper wire + high quality iron core
Three levels of filtering are used: Level 1 EMI, Level 2 Capacitor Array, and Level 3 CLC to reduce output ripple to the lower instrument test limit.
Use full aluminum chassis.
Very low noise TL431 with excellent performance
High-power transistor discrete voltage regulator circuit
High speed low resistance HIFI electrolytic capacitor
This linear power supply is used to upgrade a variety of audio equipment, digital equipment, NAS hard disk boxes, mobile hard disk boxes, various CAS, wireless routers, fiber optic modules, set-top boxes, MAC mini, PC HiFi, Thinkpad HP Asus.
Specifications:
Working voltage: AC115V or AC230V (for choice)
Output voltage: DC12V@3A (Maximum output current) 5V、9V、15V 19V、 20V、 24V
We also can accept custom-make other voltage.

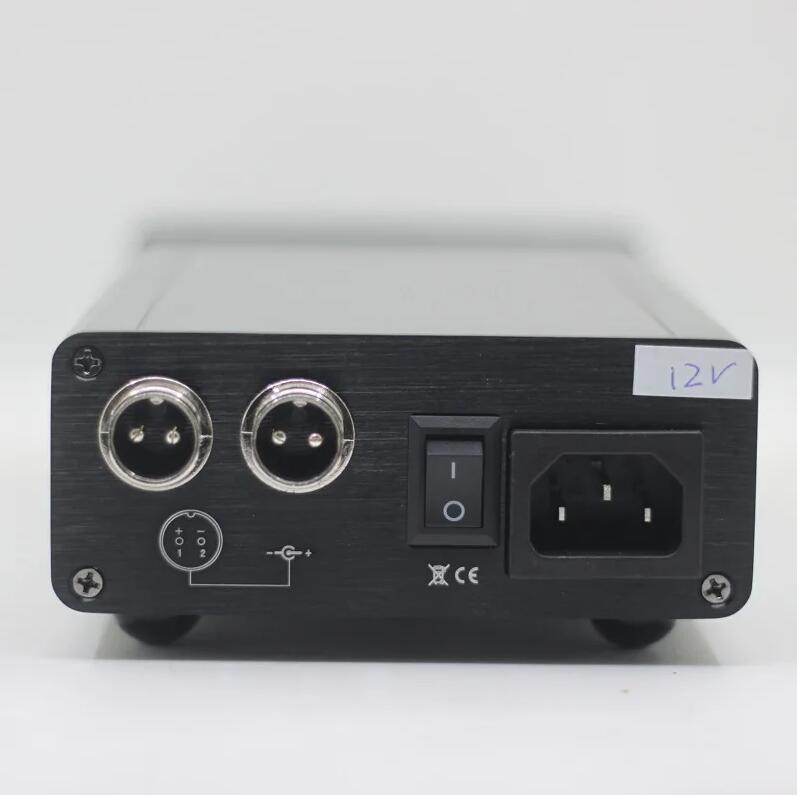

Output terminal: 2*2P output seat
Output DC cable plug type: default 5.5*2.5mm (Polarity: Internal + / outside - ) (Pin 1 + / Pin 2 - )
Dimensions (W*H*D): 116MM * 50MM * 209MM
Net weight: about 1.4KG
Package list:
1 × 50VA linear power supply

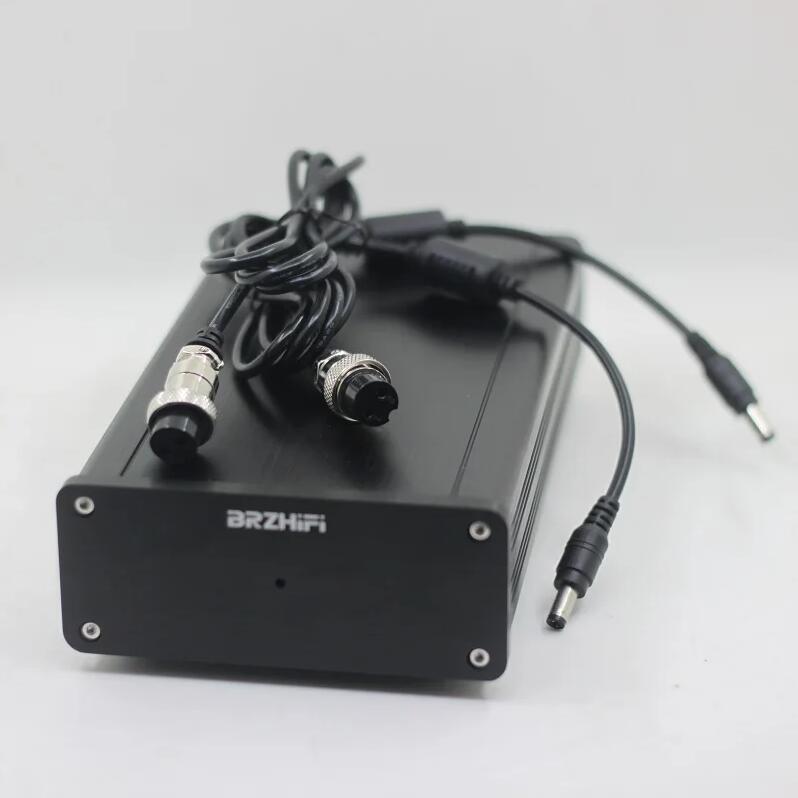

2 × DC5.5-2.5mm DC power output cable
Note: AC power cord is not included
