Version 1: equipped with SM5842 digital filter
Version 2: equipped with PMD100 digital filter
Version 3: equipped with NOS module
Version 4: equipped with DF1706 digital filter
Version 5: equipped with DF1704 digital filter
Version 6: Default configuration (the price does not include all IC chips
Balanced MARK version PCM63/1702 decoding 2022.11.27 updated version
After the previous adjustment and experience, the new version focuses on strengthening the power supply part. The D/A conversion analog output part is powered separately and independently. The LT series high-precision reference source is used for power supply.
Four DAC balanced outputs
The analog part behind DAC refers to Mark and some famous computers, and combines some years of experience to make this decoder. The sound effect has been very satisfactory.

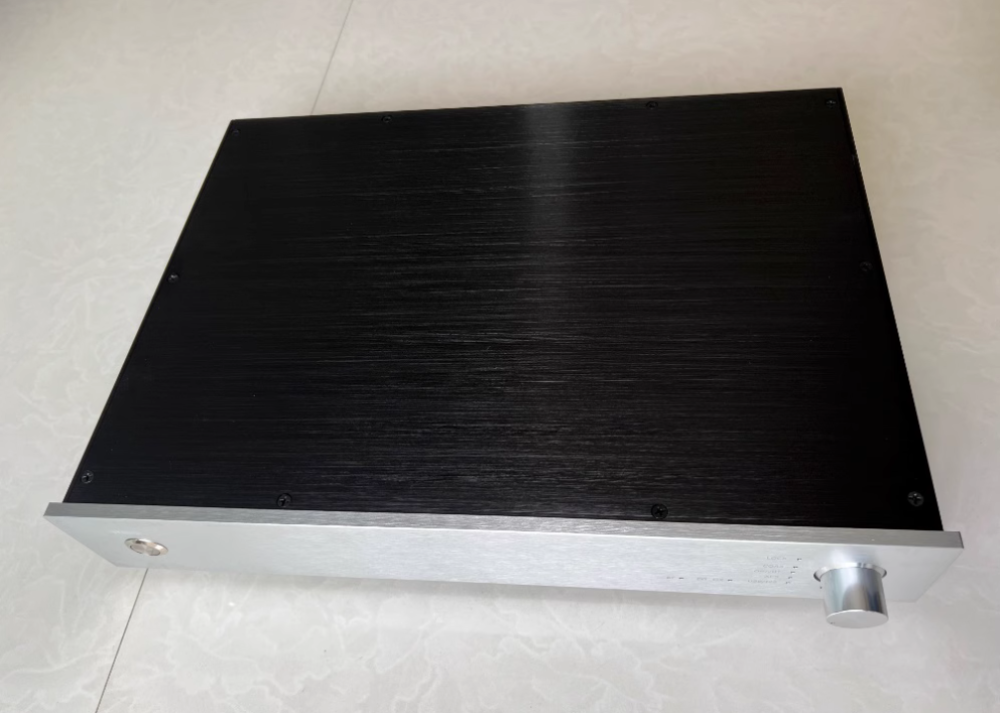

Chassis specification: 430
Operating weight: about 6.6kg
Package description:
1. The default configuration of the machine is CS8412CS+PCM63P1+ceramic seal AD841JQ (IV conversion) and digital filtering Buyers can choose one of the PMD100/SM5842/DF17/DF1706/NOS modules they need,
2. All packages do not include USB or Bluetooth. If you need, please contact us to make up the difference.
Structural features:
1. The default DAC chip is PCM63P, which is compatible with our PCM1702, PCM1704, PCM56, PCM58, PCM61 and AD1856, AD1860 and AD1865 transfer modules.
2. Digital filtering defaults to SM5842 and PMD100, compatible with NOS module and DF17041706 switching module.
3. The finished machine CS8412CS can make up the difference and upgrade the CS8416, CS8422, WM8804, DIR9001 and AK41 18 transfer modules.

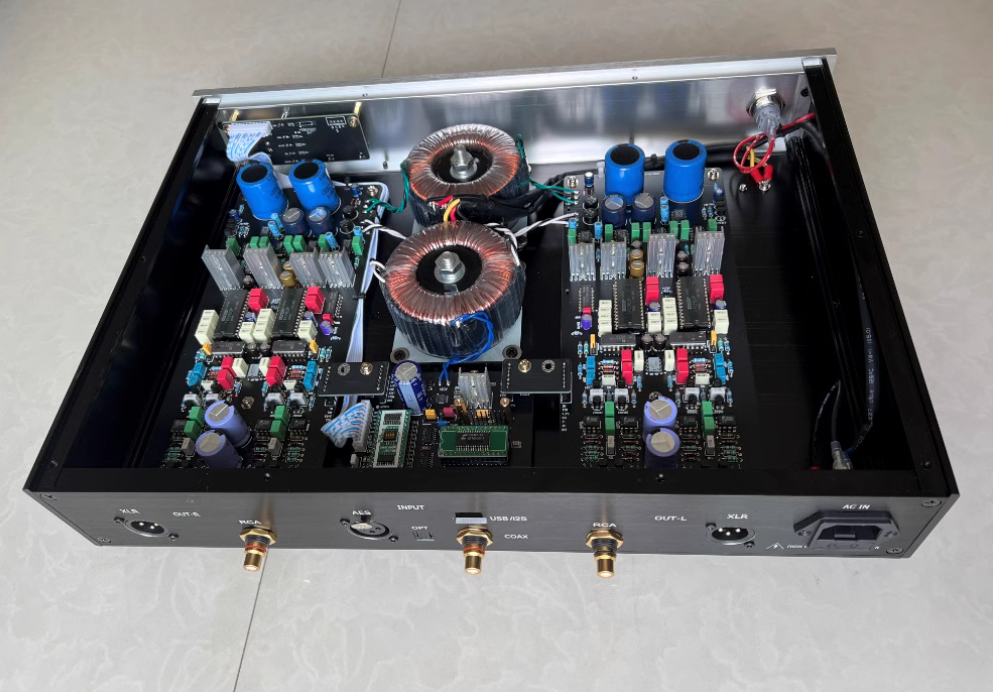

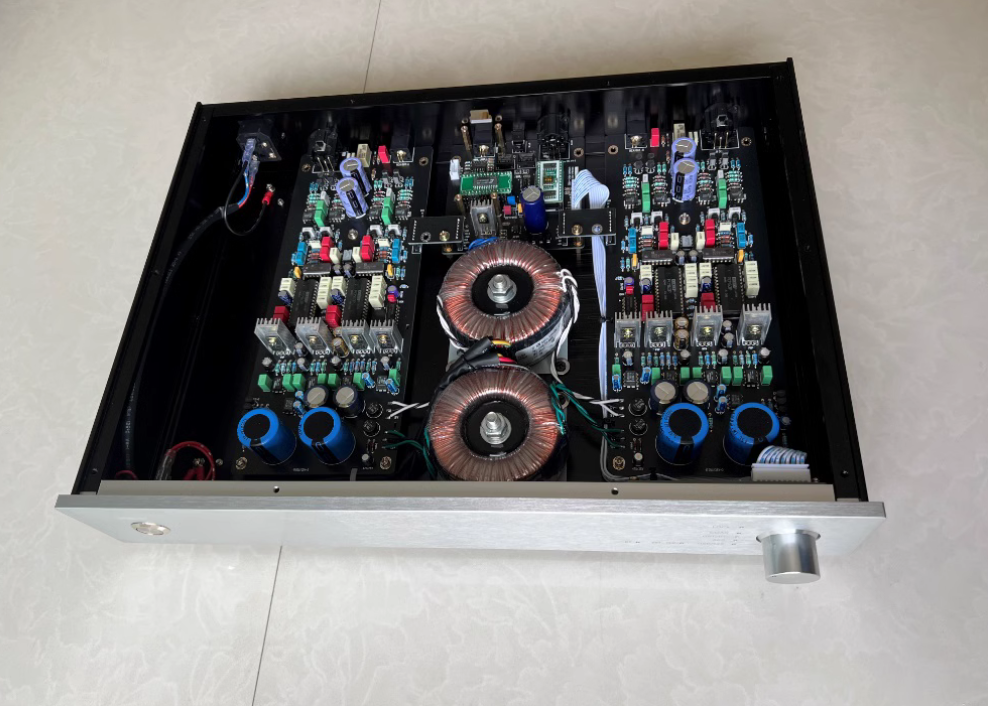

4. Imported iron cores are customized for high-quality double ring power supply, and the digital and analog parts are independent.
be careful:
1. The finished machine is bare, without any external wiring.
3. Some components of the board are disassembled parts, and the assembly opportunity may be adjusted in different periods. There may be some differences between a few components and those shown in the pictures. If you mind, you can contact us first to check the physical drawings.
