Product details:

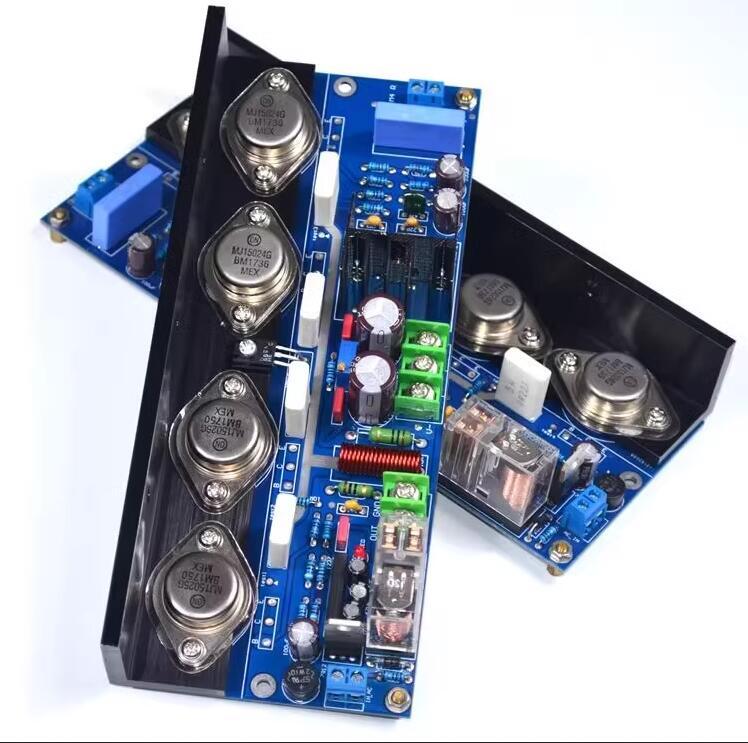

Referring to mature circuit design, UPC1342V is used as the driving force, and the output adopts imported ON original metal packaged transistors, with sweet sound. Two pairs of transistors are connected in parallel for one channel, providing strong driving force.Adjustable static current, built-in midpoint voltage protection, switch on/off delay protection

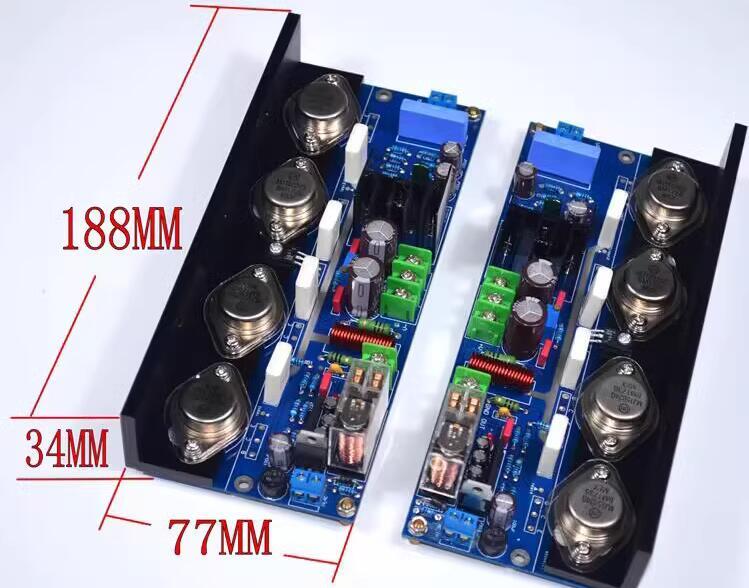

size: 188MM X 75MM X 32MM
Output power: 180W
The input voltage of the main board of the power amplifier board (to be self matched power filter rectifying plate): DC DC +40V -0--40V (positive and negative voltage can be selected in the 25-55V range), each plate protection circuit is also a set of independent single AC 12-15V, which can not be shared.
It is suggested that the protection circuit on the transformer power plate with 200W or more 22-38V should be supplied by a group of AC12-15V.
The switchgear protection circuit and neutral point voltage protection have been integrated on the board.

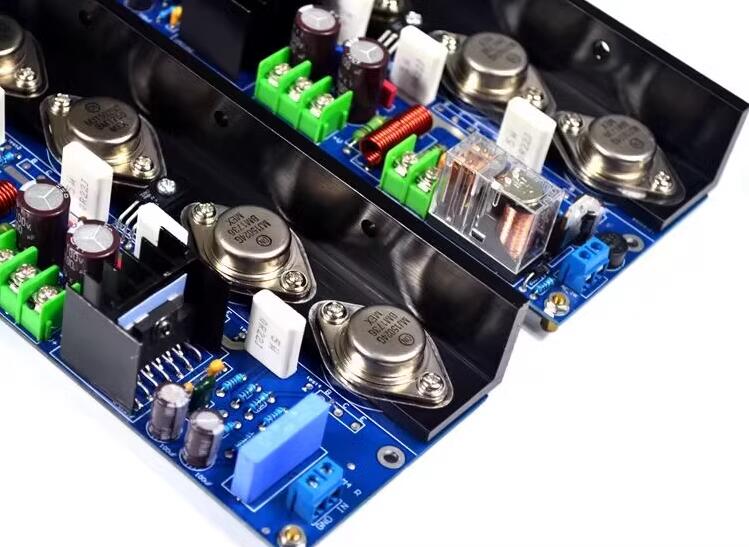

Attention: The amplifier board is equipped with a thermal bridge. Please install the heat sink before powering on
List:
UPC-M4 amplifier board x 1 pair
