Product Details:

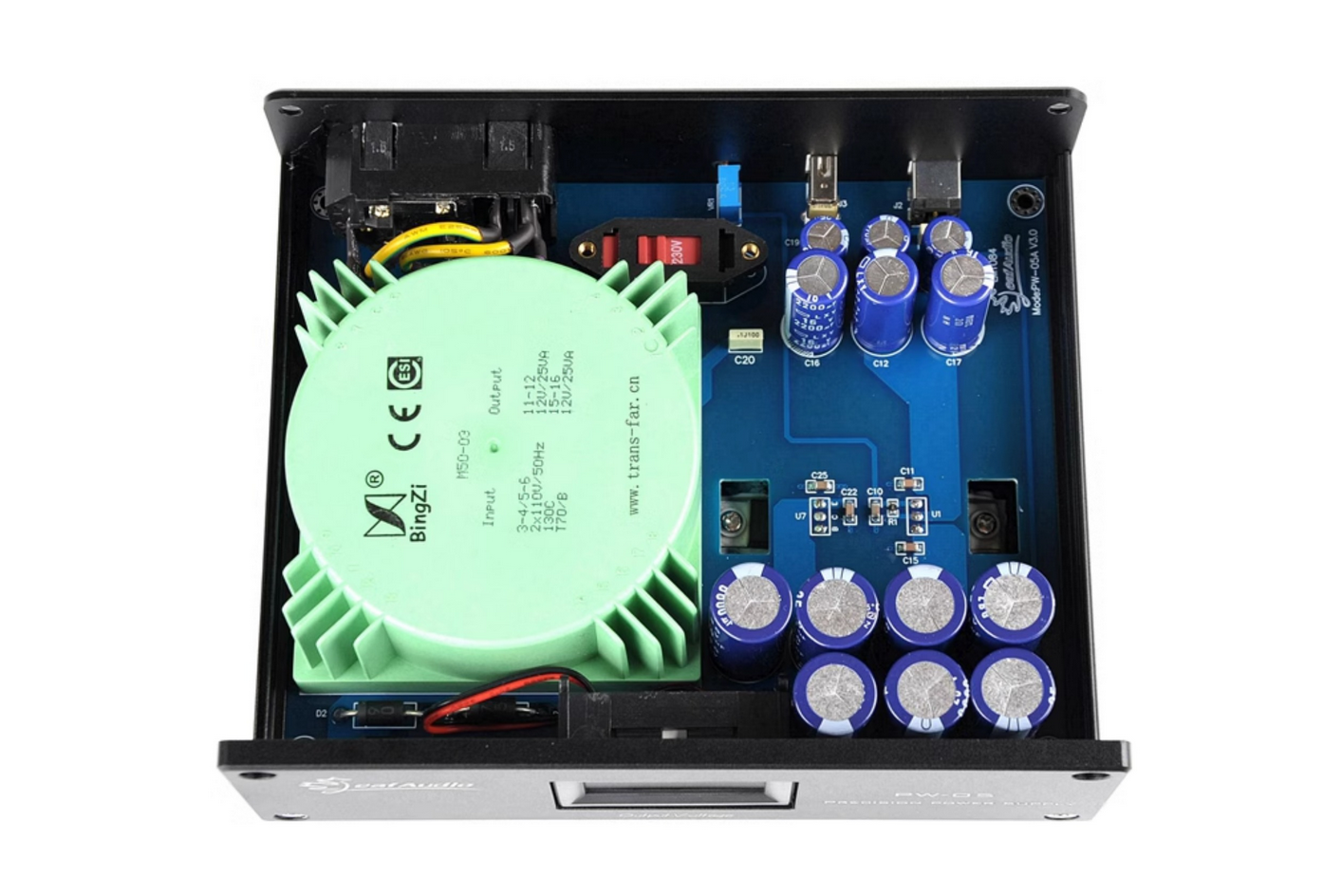

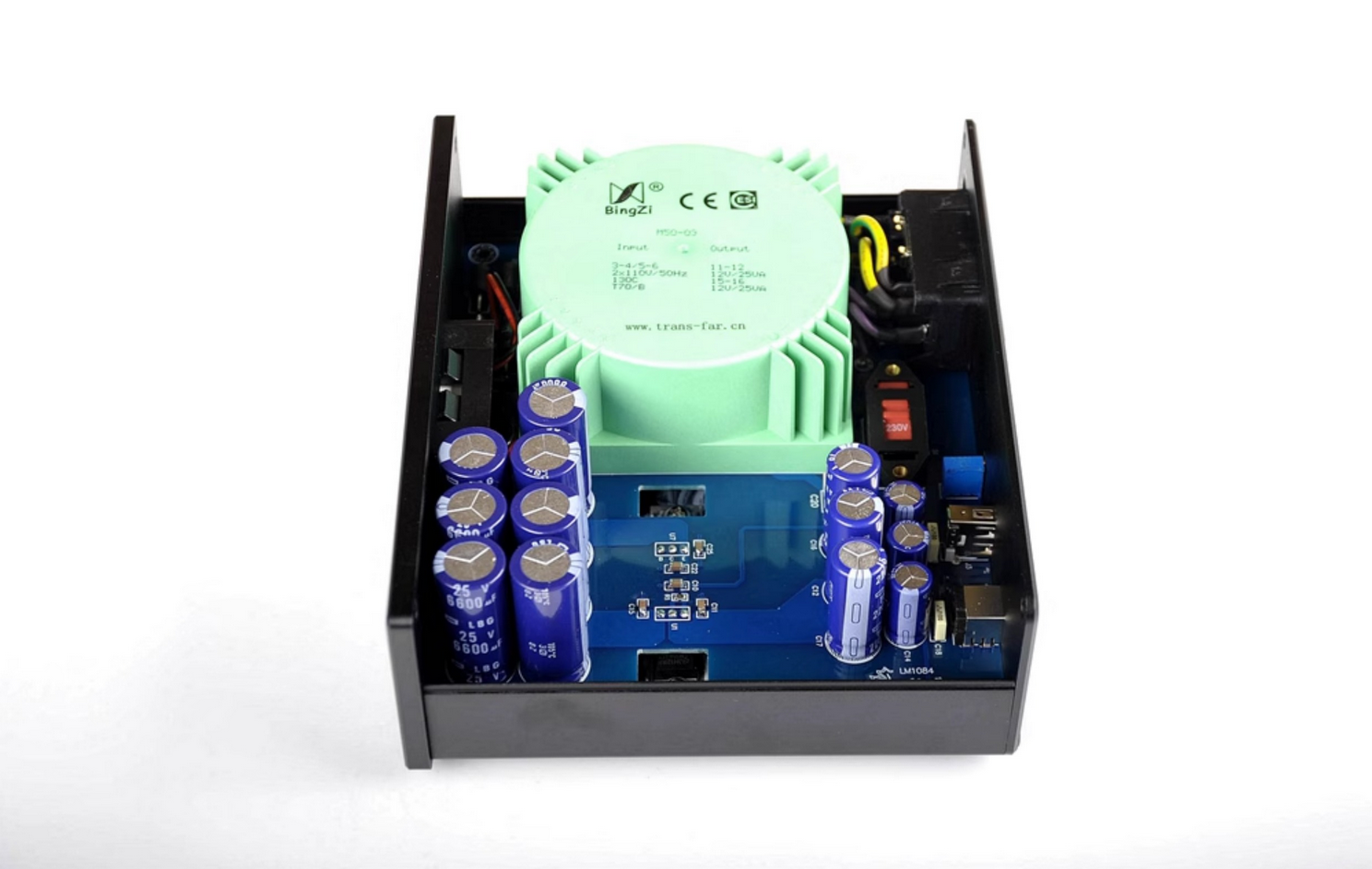

Adopting LM1085 and LM2940 voltage stabilization, sealed ring transformer, maximum output current of 3A, compared with ordinary switching power supply, the background is quieter and the sound is more transparent
1:) When the output voltage is 5V, the transformer power is 25W. When the output voltage is 9-15V, the transformer power is 50W.
2:) Due to the accuracy issue of the voltmeter, the displayed voltage may fluctuate, which is a normal phenomenon and does not affect actual use.
3:) Schottky rectifier transistor.
4:) Famous brand high temperature resistant filter capacitor.
Specifications:
AC input: AC115V or AC230V (optional)
DC output: DC5V 3A+5V 1A 9V 3A+5V 1A 12V 3A+5V 1A 15V3A+5V1A
Dimensions (W * H * D): 171 * 55 * 140MM
Weight: 2.5KG (including shipping outer packaging)
Package list:

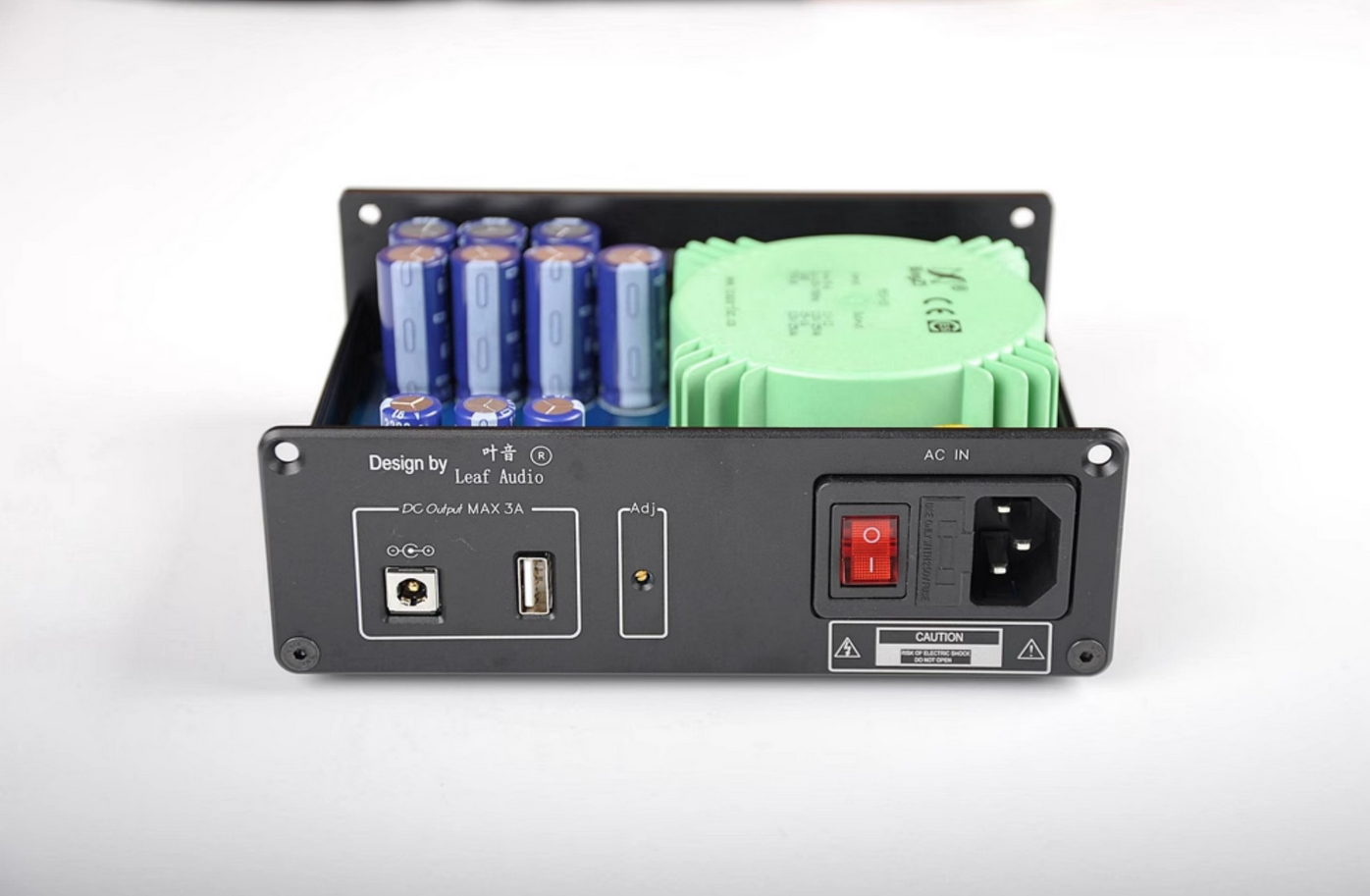

1 × Finished linear power supply
1 × DC output cable（Default 5.5 * 2.5mm.If you need output interfaces of other models, please contact us）
1 × AC power cord
