Reference NAIM HICAP NAC152XS 2-Way +24V Regulated Power Supply Board For Audio Pre-amplifier

Product Details:

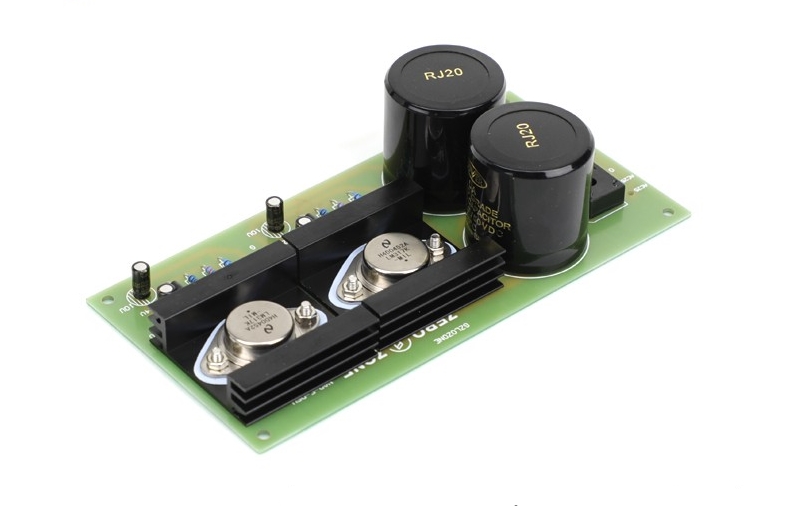

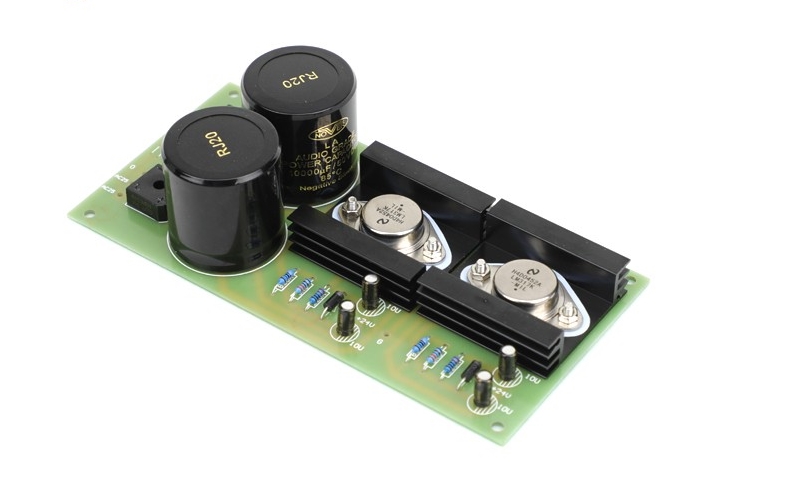

【Finished board】: It has been assembled and tested.

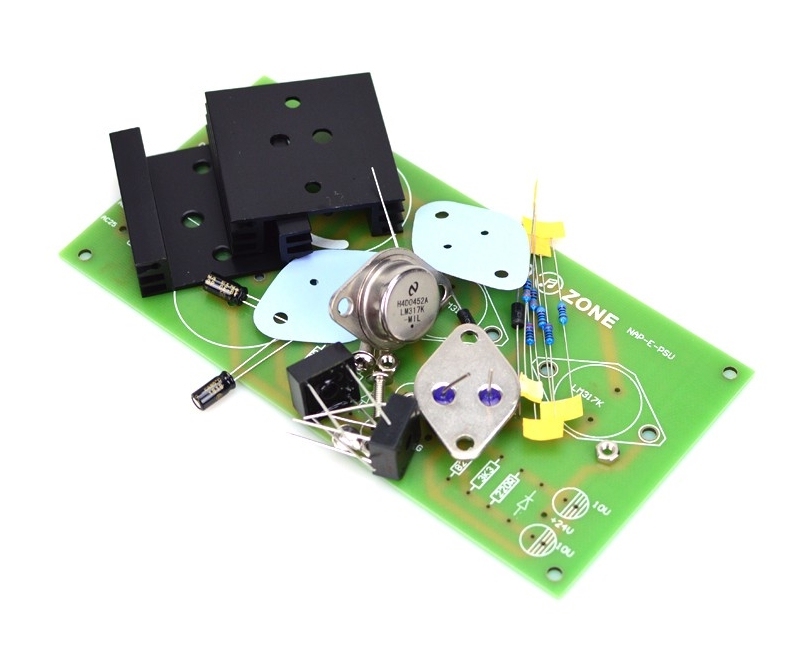

【DIY Kit】: You need to weld and assemble by yourself.

Based on the famous British NAIM HICAP power supply circuit.

The circuit is exactly the same as the original machine, but the layout is reasonably modified on the basis of the original machine, and the integrated design is finally adopted, which makes the installation and installation very convenient.

Adopt one-point grounding design.

Its power supply Input voltage can be AC dual 25V

The output voltage is two sets of DC +24V

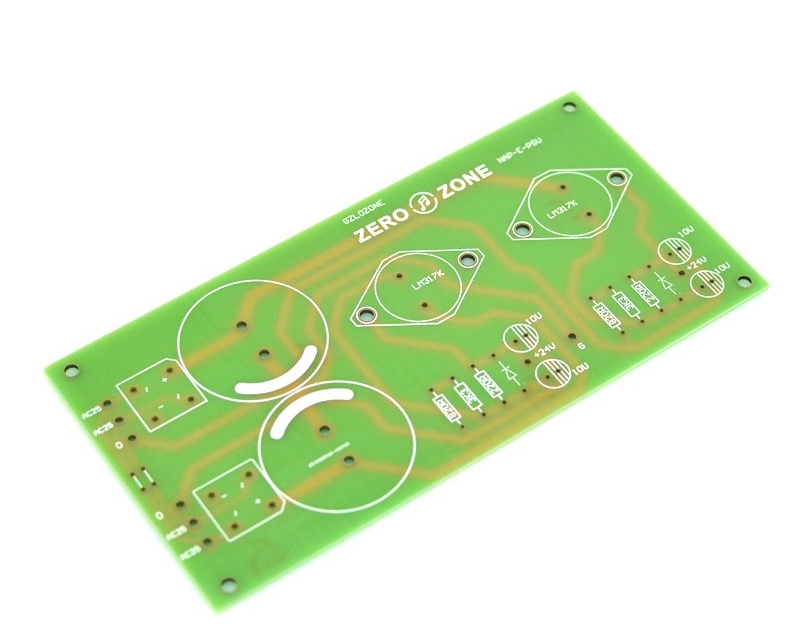

PCB size: 160*80MM
