This power supply uses double-layer filtering to effectively remove high-frequency interference from other household appliances to provide a cleaner power supply.
Precise discrete multi-tube parallel voltage stabilization method, super stable operation, greatly improve the instability of the power supply, perfectly remove the original switching power supply sound cold, hardened, unhealthy, dynamic is not good enough.
The large current supply can provide sufficient current, the background is cleaner, the high frequency is sweeter, the mid frequency is more transparent, and the low frequency is more powerful.
First-level EMI filtering.
Imported fast recovery diode.
Discrete resistor noise reduction + regulator tube

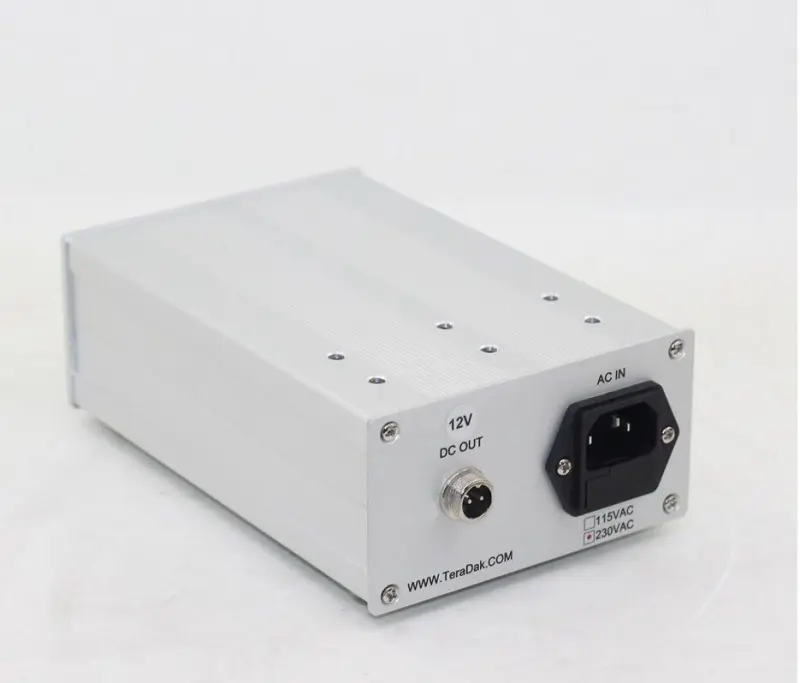

Silver all-aluminum shell, effective shielding.
Specifications:
Input voltage: AC115V or AC230V (optional)
Output voltage: DC5V/3A, 6V/3A, 7V/2.5A, 9V/2.5A, 12V/1.8A (optional)
Machine power: 30VA
Output line sequence: inside ‘+’, outside ‘- ’
DC Output jack: 5.5 * 2.5MM
Color: silver
Dimensions (W * H * D): 108 * 61 * 165MM
Net weight: about 1.2KG
Package List:
1 × Finished linear power supply
1 × 5.5*2.5MM DC cable
Note: AC power cord is not included
The DC cable default outer diameter is 5.5MM, the inner diameter is 2.5MM, if you need other plugs, For example: 3.5*1.1MM, 3.5*1.3MM, 4.0*1.7MM, 2.7*2.1MM, 6.0*3.0MM, please contact us.
