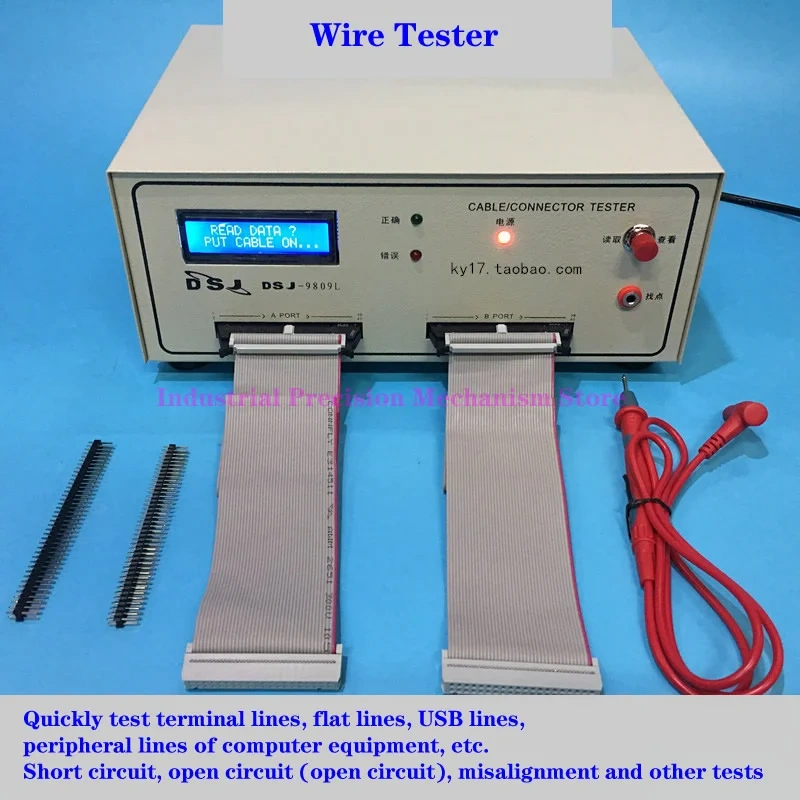

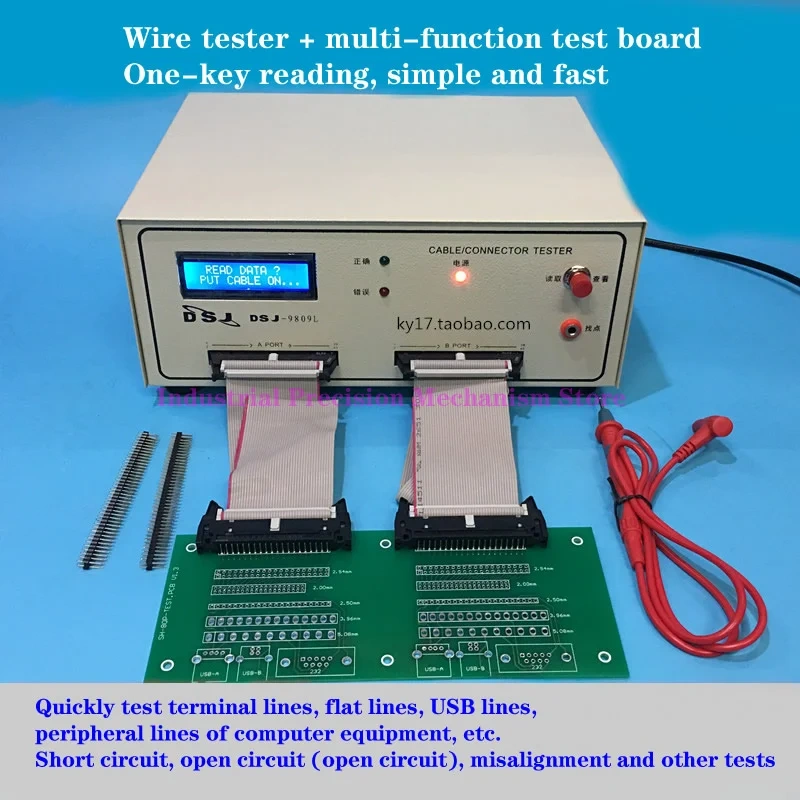

Wire tester, one-key reading, simple and fast
Quickly test terminal lines, flat lines, USB lines, peripheral lines of computer equipment, etc.
Short circuit, open circuit (open circuit), misalignment and other tests
apply to. USB data cable, RS232 communication cable and pitch. 2.54mm, 2.00mm, 2.50mm, 3.96mm, and 5.08mm wire
Main function parameters:
1. Number of test points: A terminal 40Pin, B terminal 40Pin, a total of 80P
2. Provide short-circuit, open-circuit, dislocation and instantaneous short-circuit and open-circuit tests.
3. With self-learning, self-judgment and automatic testing functions.
4. Sound and light prompts for test results.
5. It is suitable for testing one-to-one terminal harnesses and other electronic harnesses.
9809 wire tester manual:
1. Applicable
9809 wire tester is suitable for detecting electrical defects in the production process of electronic cable products such as terminal wires, USB, computer peripheral wires, and flat cables.
It can quickly detect electrical characteristics such as short circuit, open circuit, and dislocation of the wire harness. It is the latest fast and economical wire harness testing machine instrument.
2. Technical specifications
1. Working voltage: ACV220+/-10% 50HZ instrument can work continuously
2. Test point: up to 80P (A, B terminals)
3. Operating Instructions
1. Connect the power supply, and turn on the power switch on the back, the power indicator light is on, and READ DATA appears on the instrument screen? PUTCABLE ON (do you want to learn? The wire is empty)
2. Insert the 40P cable at the A and B ends, and connect the test fixture of the wire to be tested;
3. Insert the wires to be tested into the A and B terminals respectively, and confirm that the connection is good;
4. Press the "read button" after learning, press the "read button" again to view the connection information, the screen shows LINE, A: * TO B: *, each time you press the "read" button That is, only one set of wiring data can be viewed until it is finished;
5. After the reading line is correct, pull down the wire and start the test. The instrument does not need to repeat the "read" key during continuous testing, and the test can be performed automatically. When "PASS" appears on the screen and "beep" sounds, it means good product'
6. If there is a short circuit or open circuit during the test, the screen will display "ERROR: OPEN, A: ** B: **" error red light is on, and any sound will appear at the same time, indicating that the wire is a defective product (OPEN means open circuit, SHORT means short circuit, LOCATION means dislocation)
5. Matters needing attention
1. This instrument is suitable for standard testing (that is, there are terminal wires at A and B terminals)
2. When there is an abnormality in the test, you can use the probe to find a point to check whether the fixture is intact
3. The instrument must be clean and hygienic, and the operating table is clean and tidy. In case of a sudden power failure, the power switch should be turned off in time, and the power switch should be turned on again after the call
4. In case of failure of the setting, the technical service department of our company must be notified in time, and it is not allowed to start the machine for maintenance without authorization.
1. Connect the power supply, and turn on the power switch on the back, the power indicator light is on, and READ DATA? appears on the instrument screen? PUT
CABLE ON (Do you want to learn? The cable is empty)
2. Insert the 40P cable at the A and B ends, and connect the test fixture of the wire to be tested;
3. Insert the wires to be tested into the A and B terminals respectively, and confirm that the connection is good;
4. Press the "read button" after learning, press the "read button" again to view the connection information, the screen will display LINE, A: * TO B: *, each time you press the "read" button Only one set of wiring information can be viewed at a time until it is finished;
5. After the reading line is correct, pull down the wire and start the test. The instrument does not need to repeat the "read" key during continuous testing, and the test can be performed automatically. When "PASS" appears on the screen and "beep" sounds, it means good product'
6. If there is a short circuit or open circuit during the test, the screen will display "ERROR: OPEN, A: ** B: **" error red light is on, and any sound will appear at the same time, indicating that the wire is a defective product (OPEN means open circuit, SHORT means short circuit, LOCATION means dislocation)
Dual-ended cable testing functionality This wire harness tester detects conduction, short circuits, and dislocations in data cables with precision. Ideal for quick diagnostics during home DIY projects or electronics maintenance.
Durable aluminium-copper alloy construction Made from high-quality aluminium-copper alloy, this tester ensures long-term durability and reliable performance under regular use. The robust material resists wear and maintains structural integrity.
Compact and lightweight design With a package size of 30 x 22 x 22 cm and a weight of 2.600 kg, this tester is easy to store and transport. Its compact form fits well in any workshop or toolbox.
