Package:

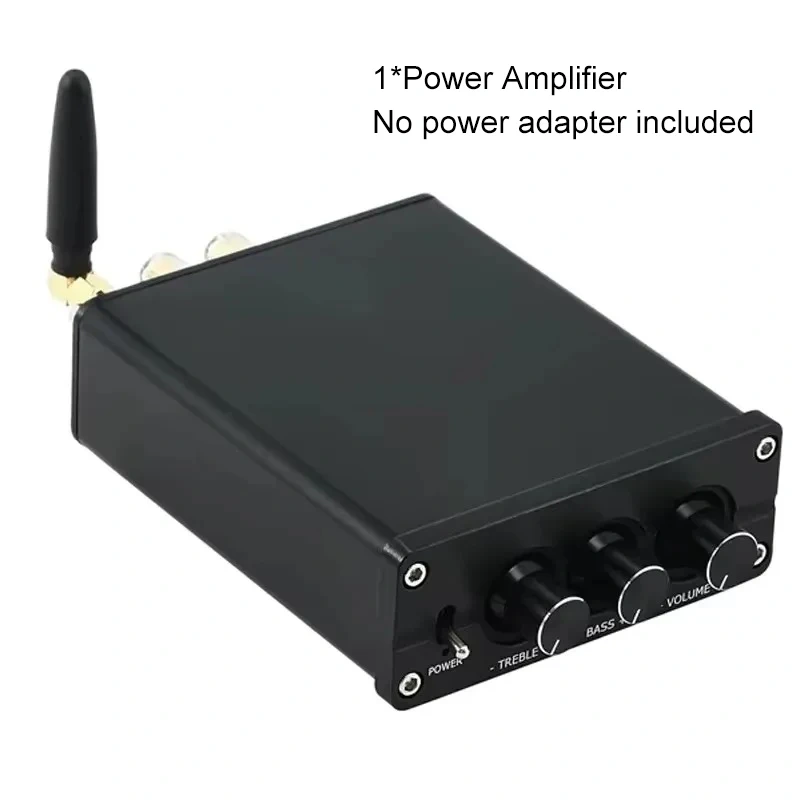

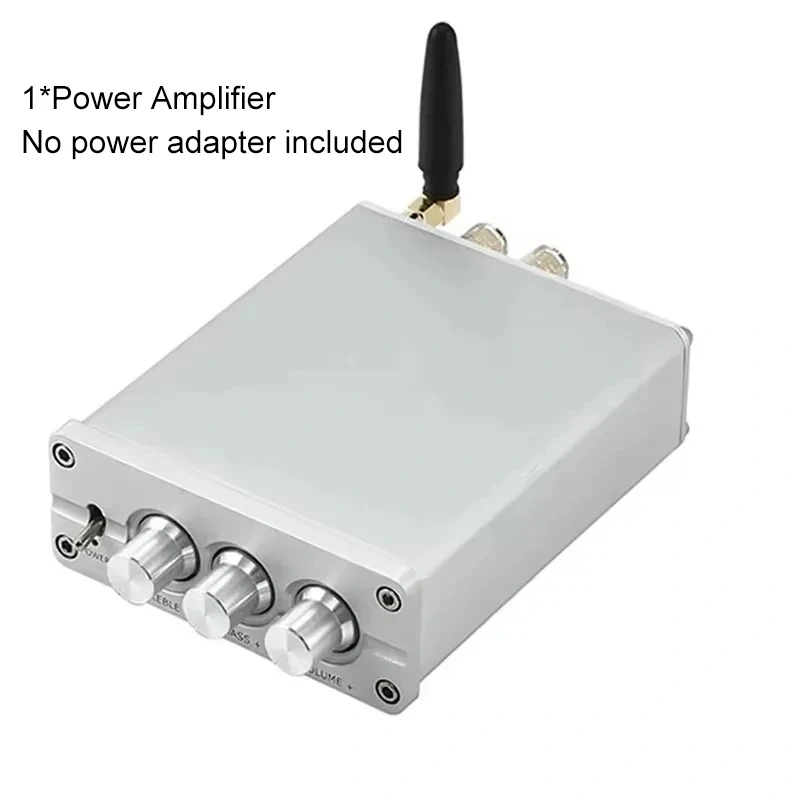

1*Power Amplifier

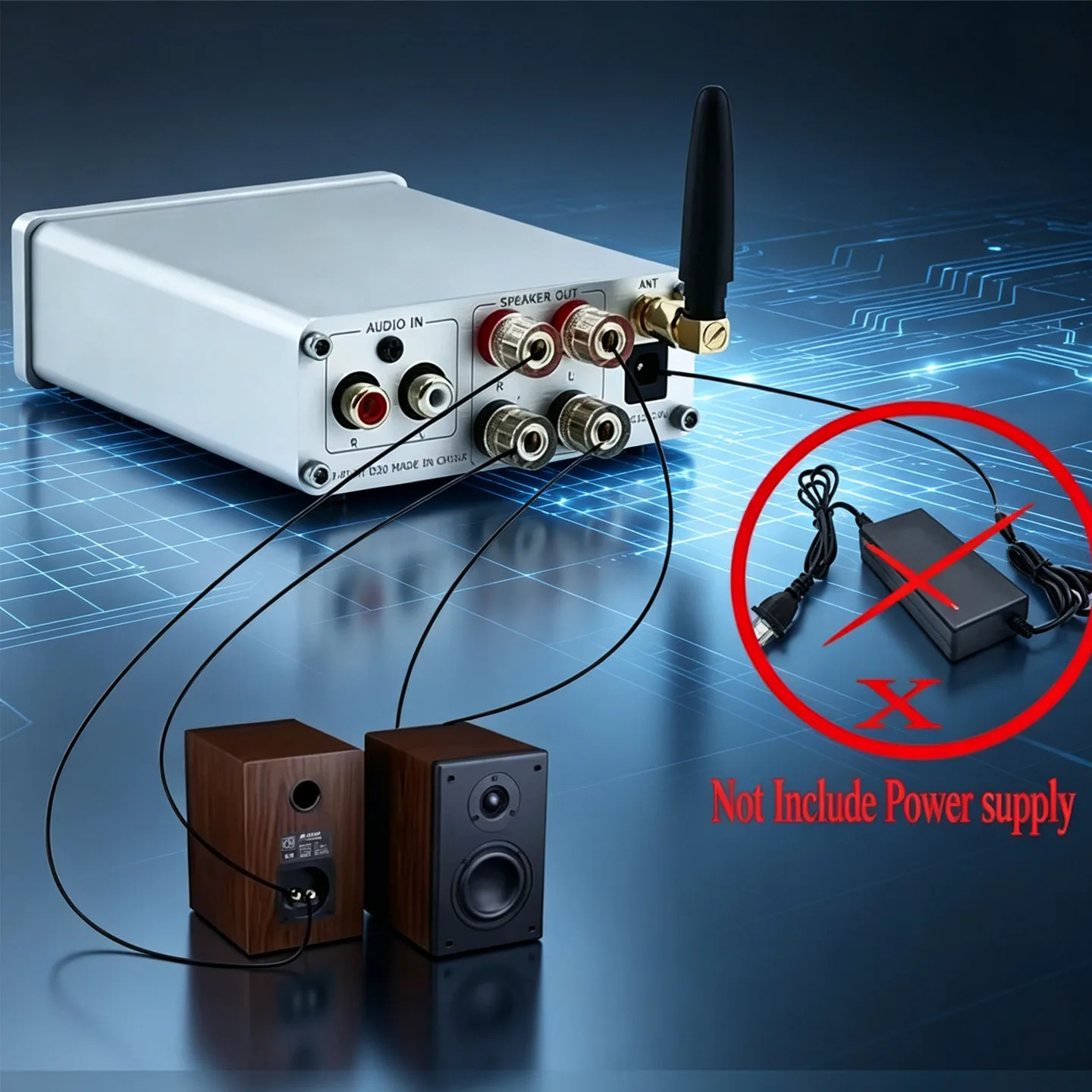

No power adapter included
Model: D100B
Output channel: 2.0 channels

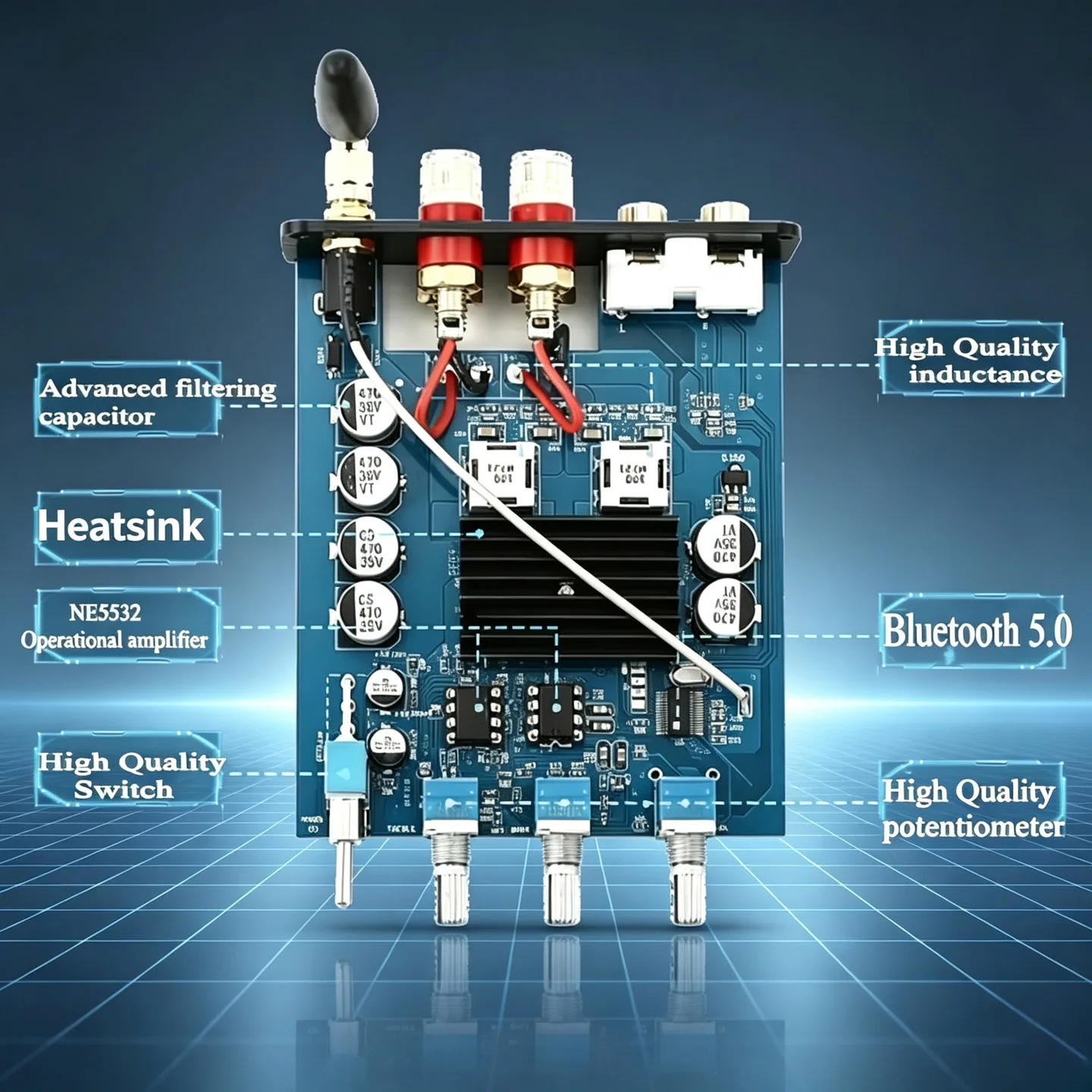

Amplifier chip: ТРА3116*2
Bluetooth version: Bluetooth 5.0
Frequency response range: 20-20KHz
Power supply: 12V-24V, the higher the voltage, the greater the power
Output power: 100W * 2/4 Ω, 50W * 2/8 Ω, Measured at 24V
Compatible speaker: OW-300W 4 Ω 8 Ω 16 Ω
Bluetooth transmission distance: 10 meters
Protection mechanism: power reverse protection, short circuit protection, self recovery overheating protection

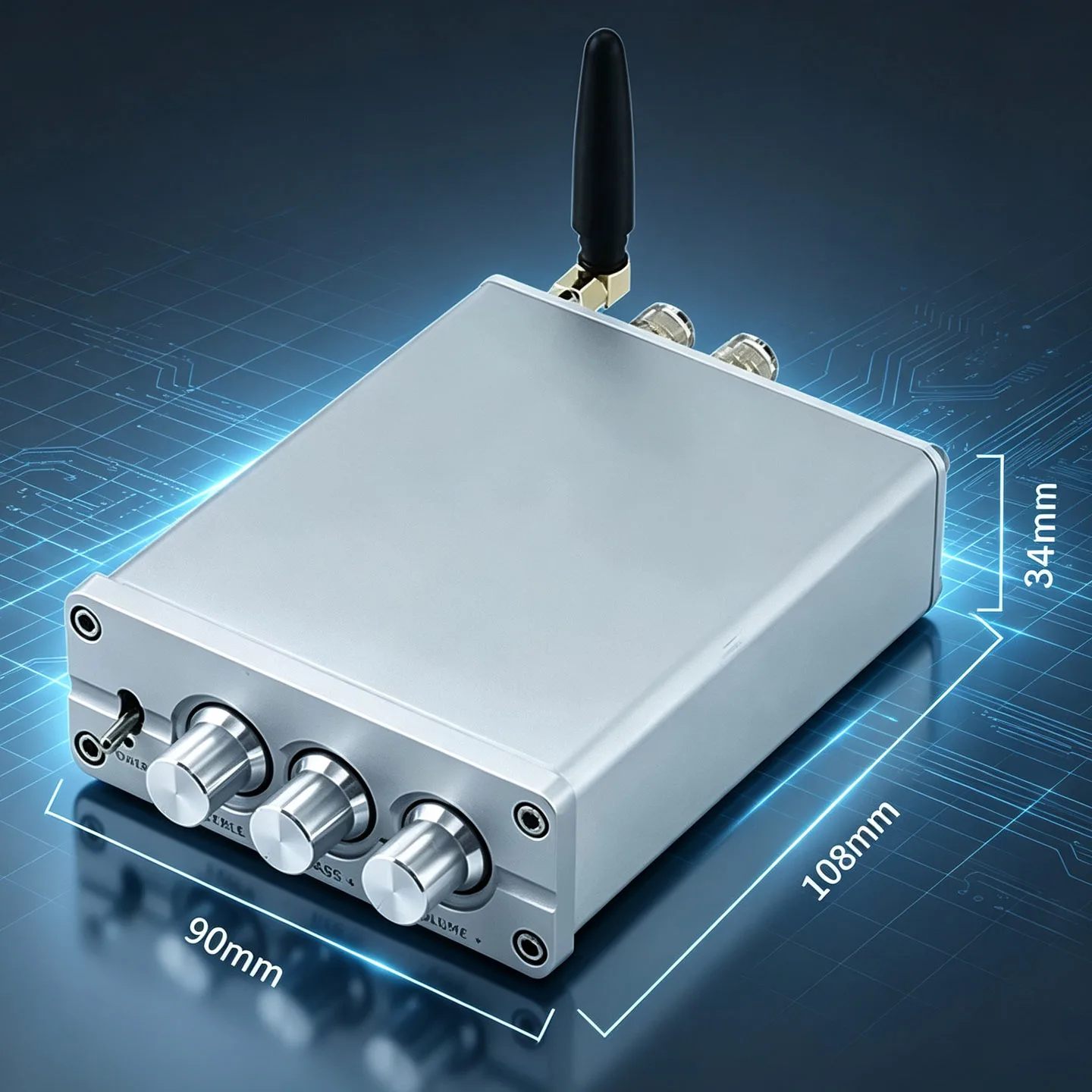

Size: 90mm * 108mm * 34mm
Weight 300g
Amplifier type: HIFI amplifier

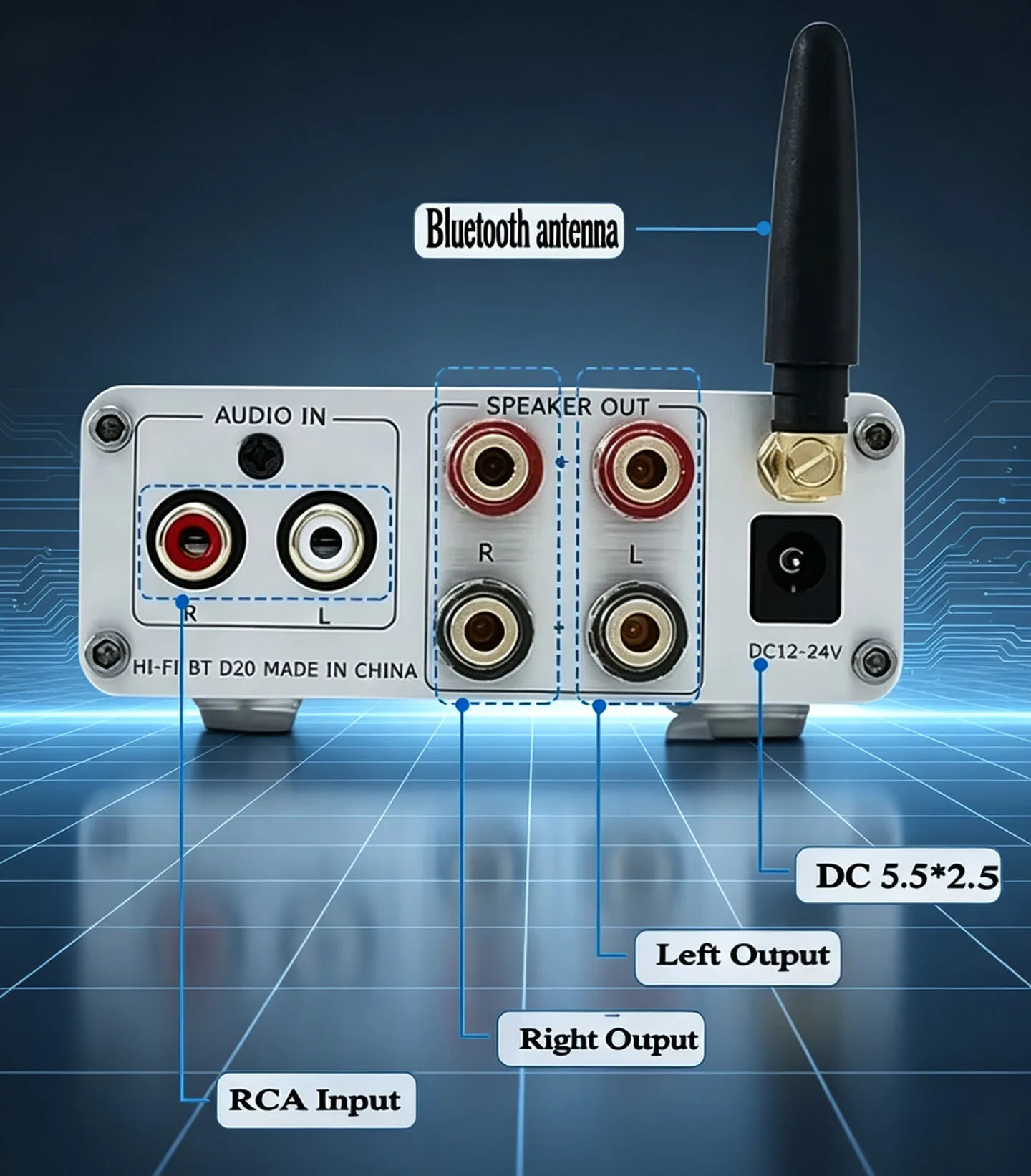

Power socket specification 5.5 * 2.5
Note:
1. D100B defaults to Bluetooth enabled without RCA input, with the Bluetooth name YJHIFI, and can be connected to play. If you want to use RCA input audio, you must plug in two RCA cables for the left and right channels. If you only plug in one channel, you still need to use Bluetooth mode. At this time, RCA input cannot be used, and two cables must be plugged into the RCA socket to switch to RCA input mode.
2. D100B output can only be connected to passive speakers and cannot be connected to active speakers or constant voltage speakers.
3. D100B uses DC12V-24V power supply, with higher voltage resulting in greater power output, but not exceeding 24V, otherwise the amplifier will burn out. The power plug is 5.5 * 2.5, with positive inside and negative outside.
4. The negative terminals of the amplifier output cannot be connected together, otherwise it will cause the amplifier to burn out.
