Package:
1*Decoder
Instructions for Use
1. The USB cable for connecting the U316 must be a TYPE-C data cable or a C-port OTG cable; charging cables are not allowed.
2. No additional software is required to connect the U316 to a mobile phone or computer. For computer connection, Windows 10 or a later version is required. To play DSD files on a computer, an additional ASIO driver must be installed. To play DSD files on a mobile phone, the Hiby Music Player must be installed. The DSD indicator on the panel will light up when a DSD signal is received.

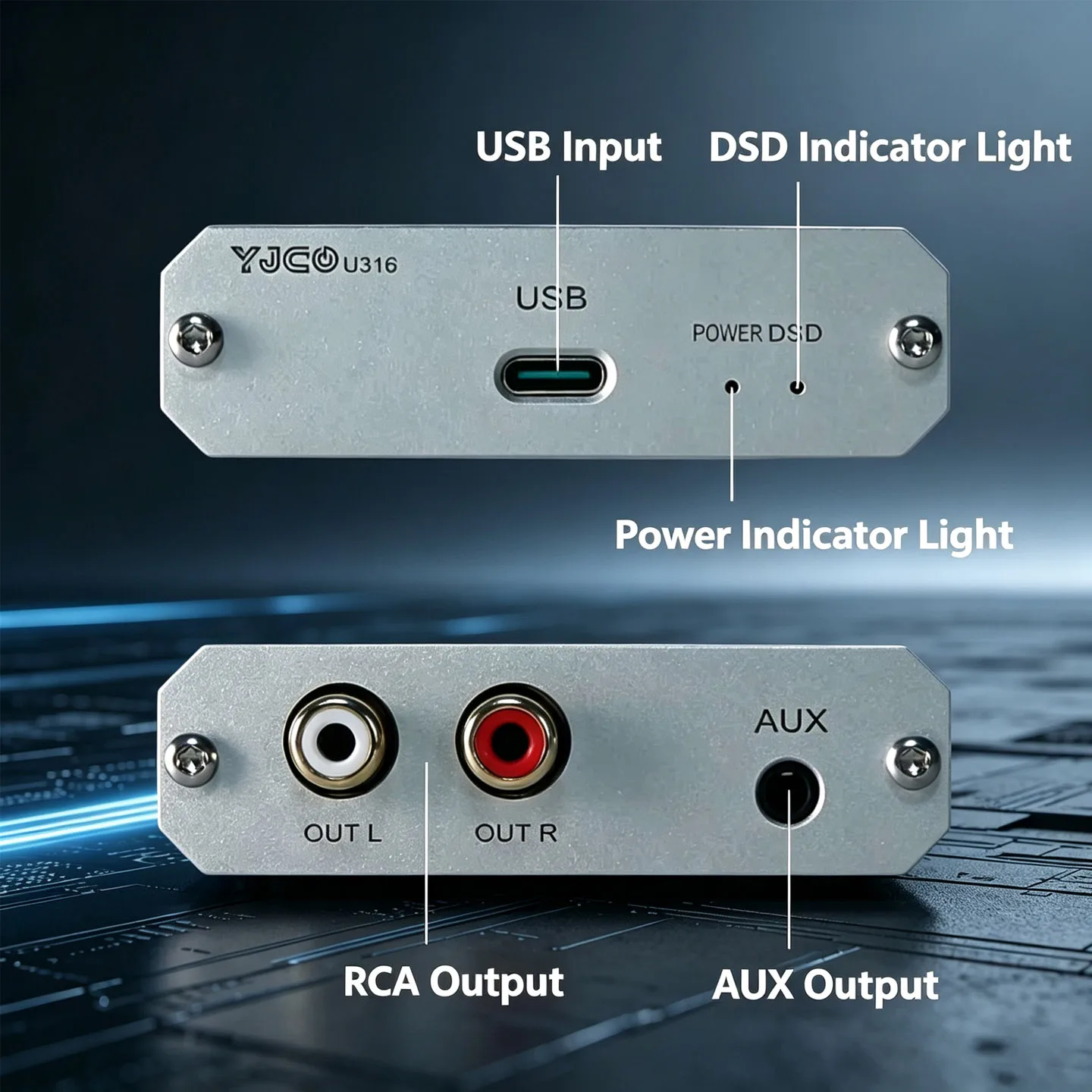

3. The AUX output port is designed for use with a 3.5mm AUX cable and is not suitable for directly driving headphones.

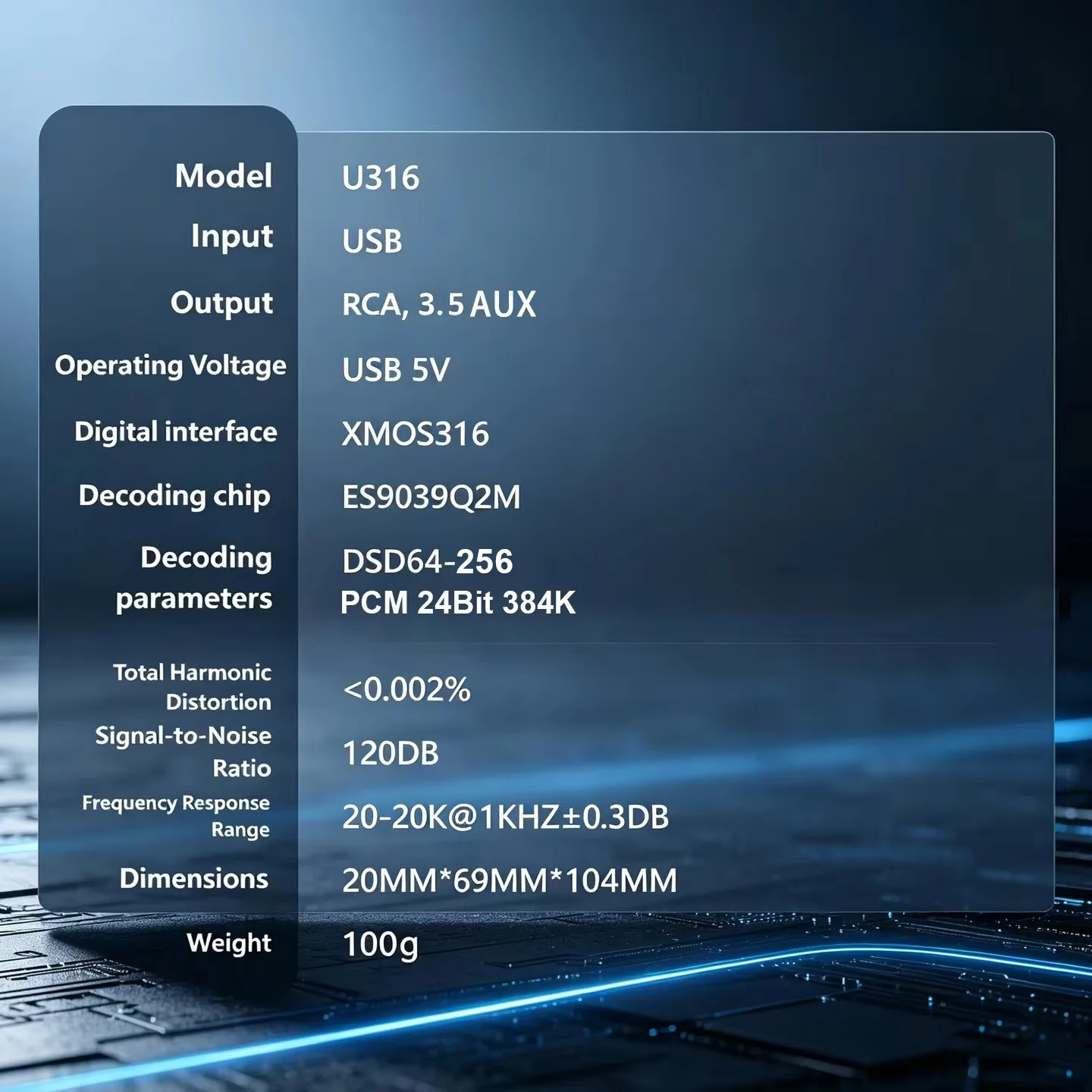

Specificatons:
Model: U316
Input: USB
Output: RCA, 3.5mm AUX
Operating Voltage: USB 5V

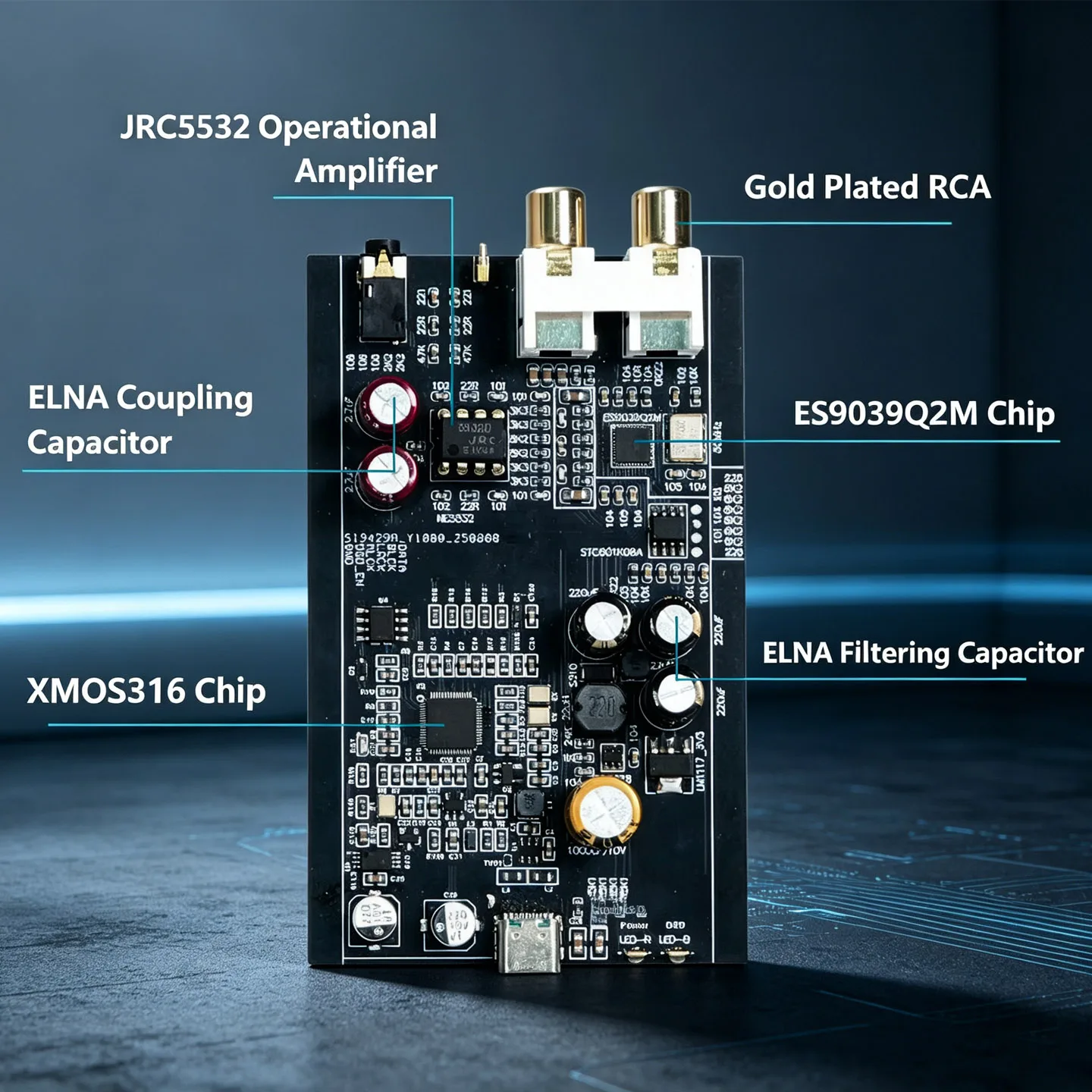

Digital interface: XMOS316
Decoding chip: ES9039Q2M
Decoding parameters: DSD64-256 PCM 24BIT 384K
Total Harmonic Distortion: <0.002%
Signal-to-Noise Ratio: 120DB
Frequency Response Range: 20-20K@1KHZ±0.3DB

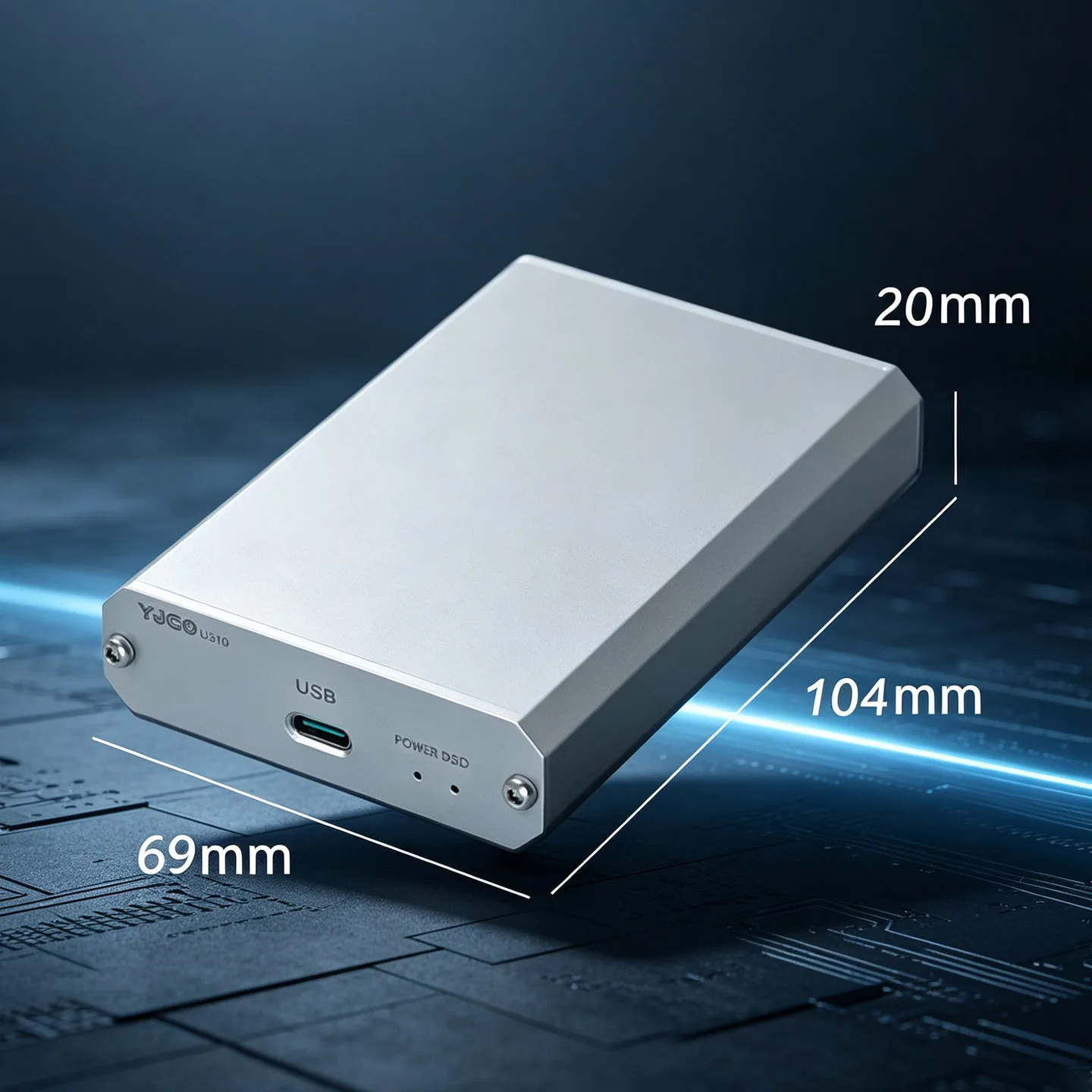

Dimensions: 20mm*69mm*104mm
Weight: 100g
