D325Max high-power TPA3255 retro mechanical pointer fiber optic coaxial Bluetooth 5.1 HIFI power amplifier ES9038Q2M decoding

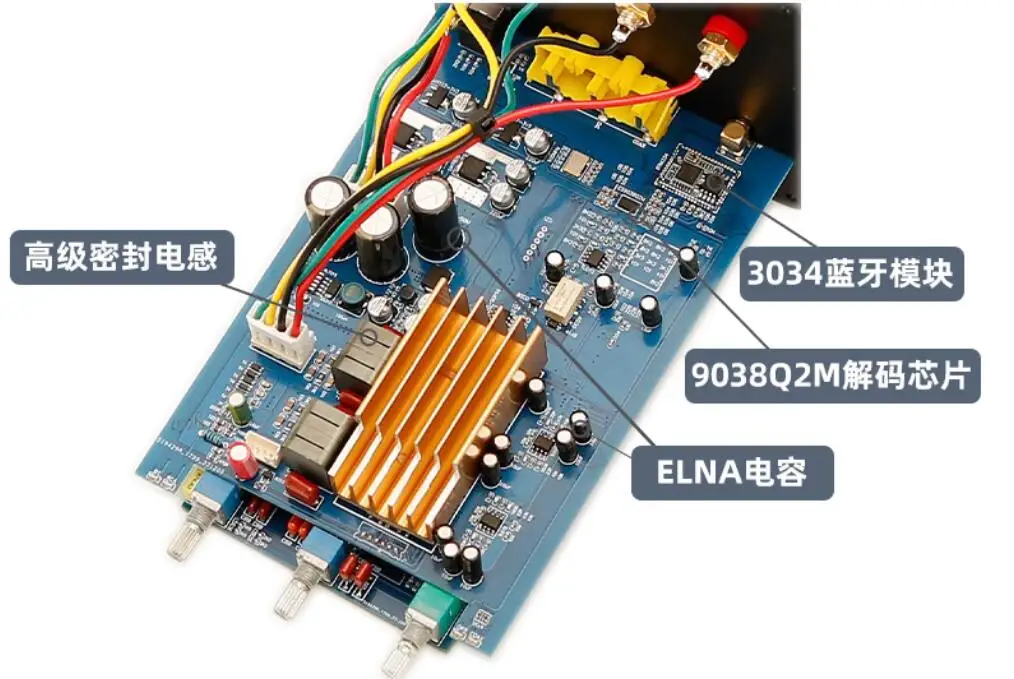

The D325MAX power amplifier is equipped with an advanced decoding chip ES9038Q2M

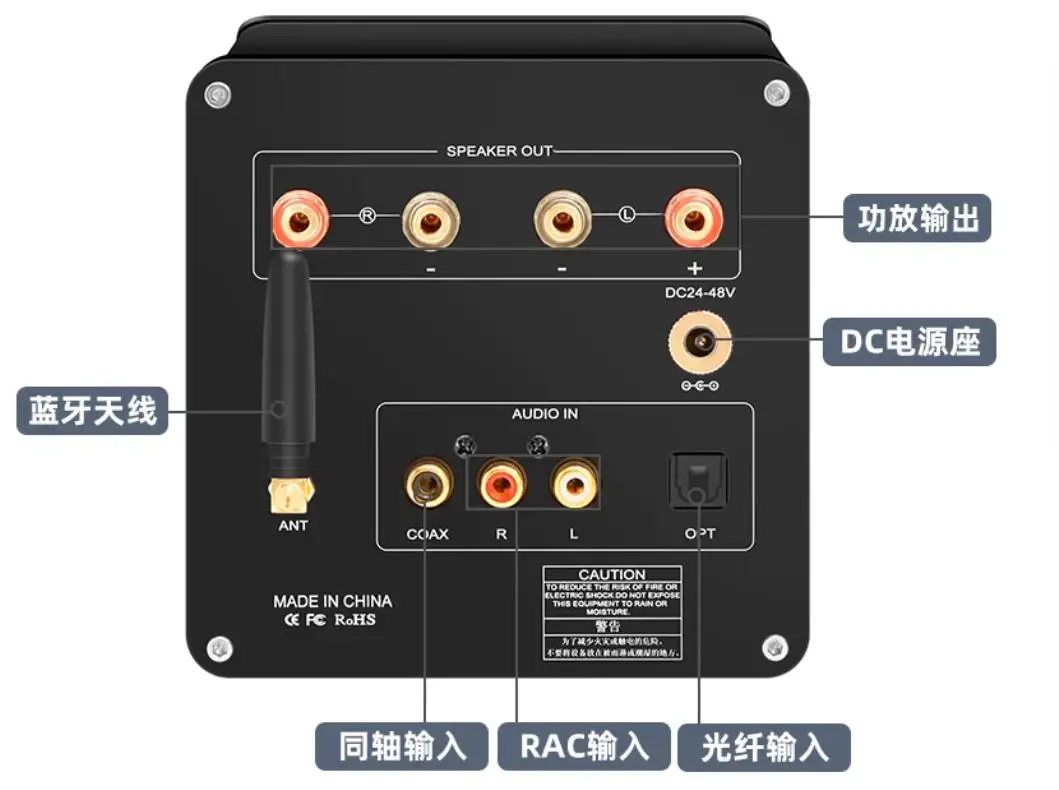

Supports fiber optic coaxial input, and Bluetooth input also goes through this process
The chip decodes separately. So the resulting effects will have more details
The sound field is larger. The amplifier circuit uses high-power sealed electricity
Sense, performance is stronger than red ring inductance, and low-frequency control is better
Higher power, better high-frequency extension, transparent and delicate. built-in
3034 Bluetooth module, supporting APTX HD lossless transmission, enabling
The effect of Bluetooth output is comparable to that of CD player input. Very user-friendly
Convenient.
D325MAX, With tone function, it can adjust high and low frequencies.
instructions:
1. Short press the volume knob to switch inputs, and the corresponding front indicator light will light up.
Long press to enter standby mode.
2. The Bluetooth name is "YJHIF", search for the name and connect it.
3. The power supply voltage of D325MAX is DC24V-48V, and the higher the voltage, the greater the power.
The voltage should not exceed 48V, otherwise it will burn out the machine.
