Parameter Details
Product Highlights:

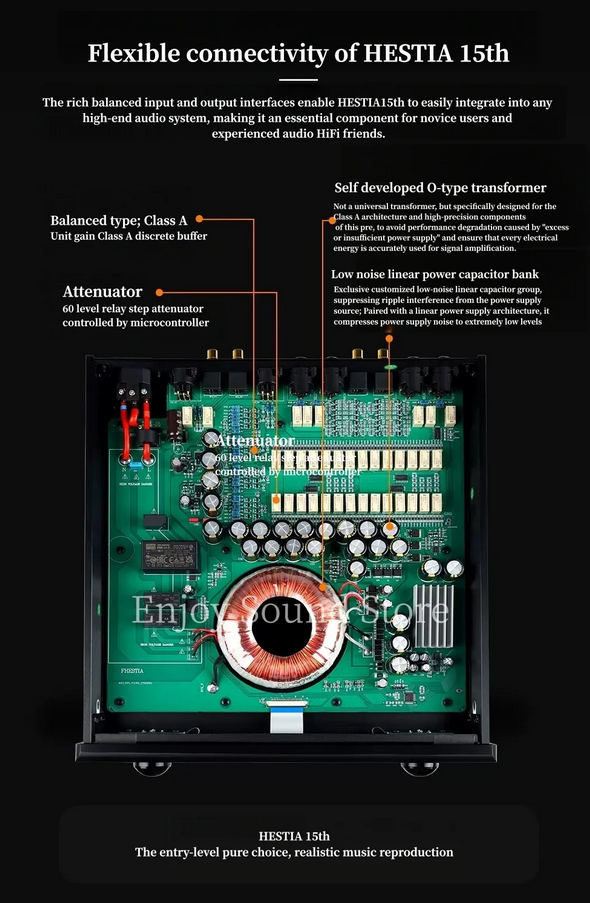

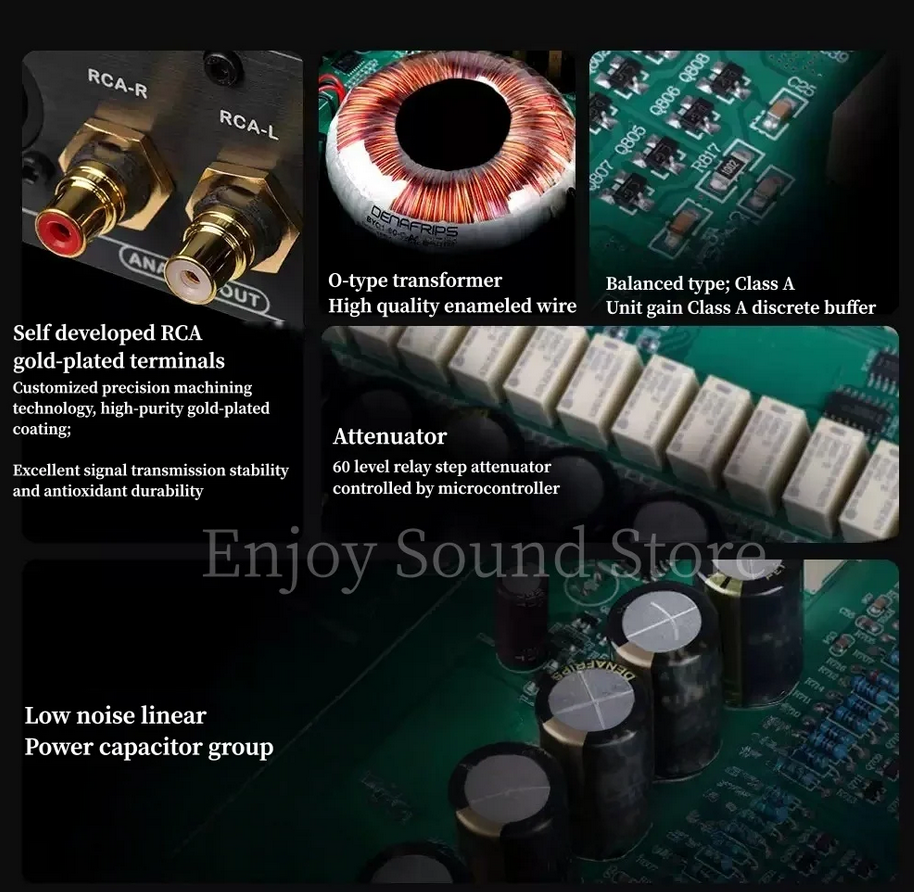

Pure Class A, true balance, fully discrete component circuit design. A relay type step attenuator controlled by a 60 level microprocessor is precisely paired with resistors and components to achieve perfect channel balance and low distortion, supporting remote control

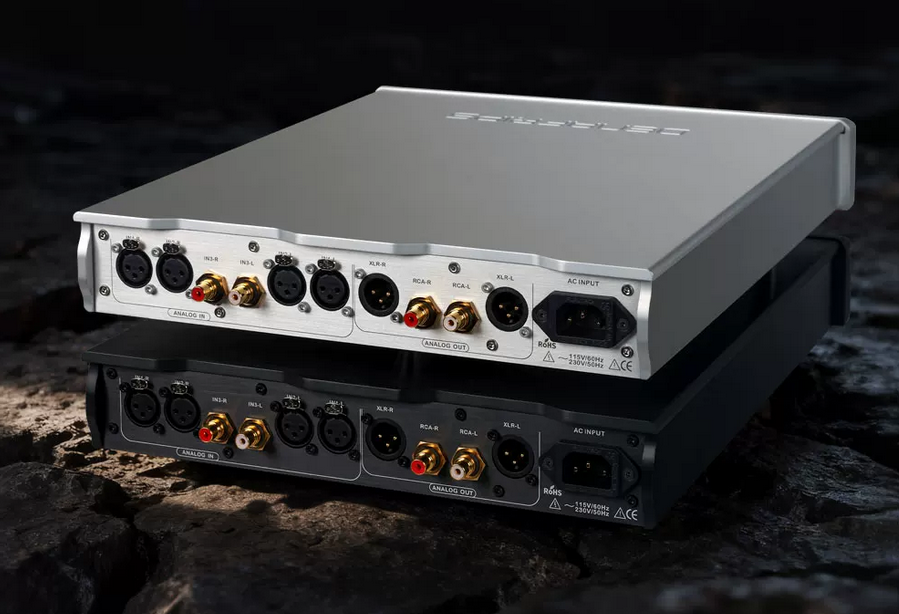

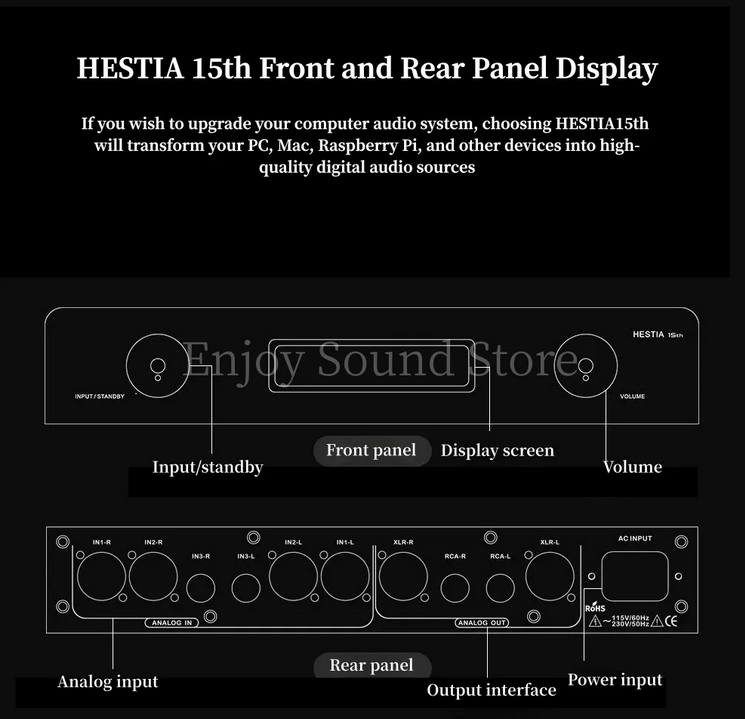

Input interface:,IN1-XLR1 interface,IN2-XLR2 interface, IN3-RCA interface
Input impedance:Single end: 12.2K Ω, Balance: 60K Ω
Output interface: Lotus (RCA) output: 2.0Vrms (RMS) ,XLR output: 4.0Vrms (RMS)
Output impedance: Single ended: 200 Ω, balanced: 400 Ω
Gain: Unit gain (0 decibels)
AC power requirements: 100-240VAC, 50/60Hz (globally applicable voltage)
Power consumption: 1W (standby), 20W (working state)
Frequency response: 10-80 KHz (-0.3 dB)
Total harmonic distortion:<0.0012%
Signal to noise ratio: 120dB
Dynamic range:>121dB
Stereo crosstalk: -110dB

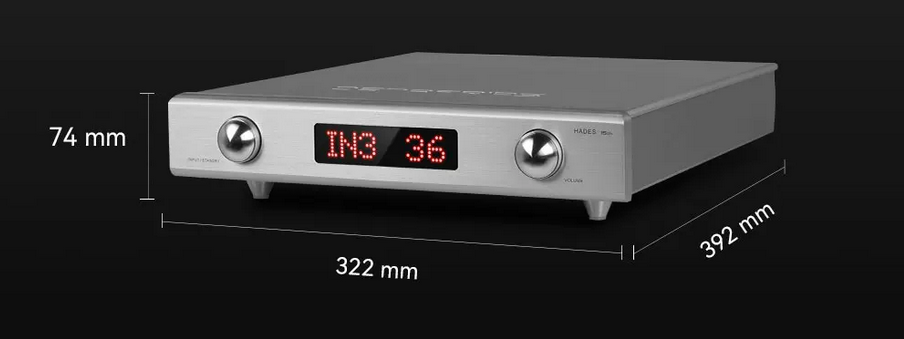

Size: W322xD348xH74mm (including machine legs)
Weight: 6.3 kg
Color: Silver/Black
