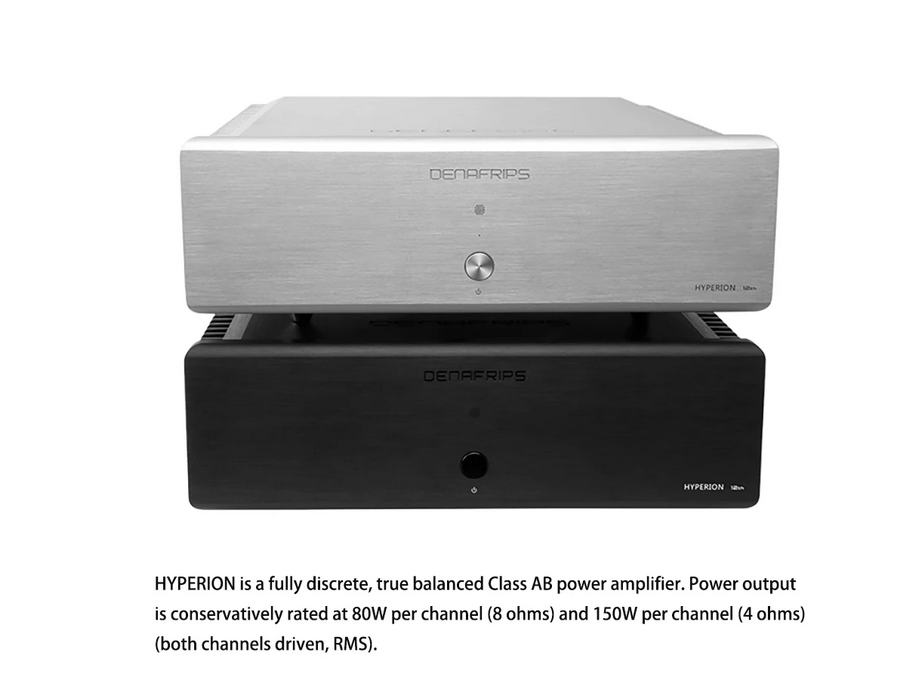

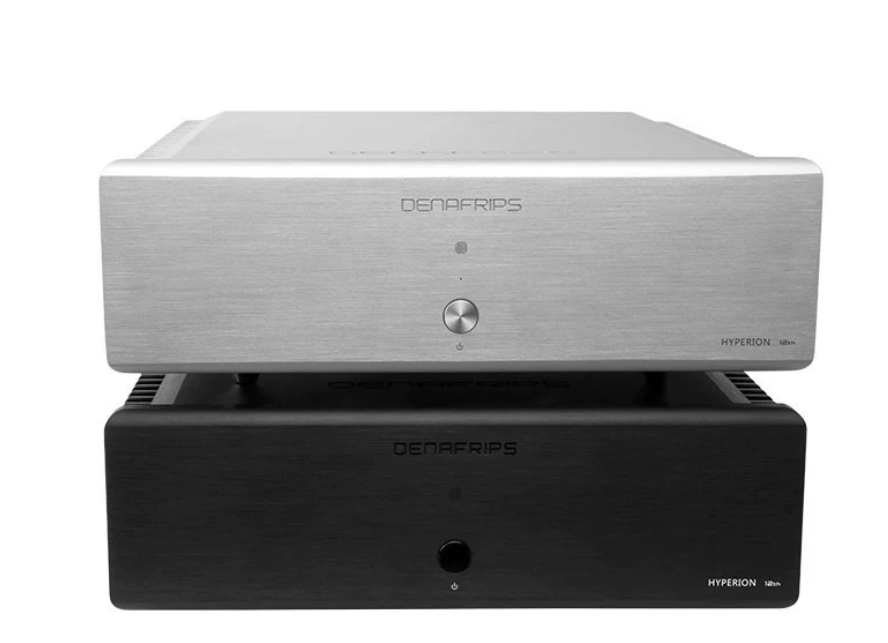

The HYPERION is a fully discrete, true balanced Class AB power amplifier. Power output is conservatively rated at 80W per channel into 8 ohms and 150W per channel into 4 ohms (RMS, both channels driven).

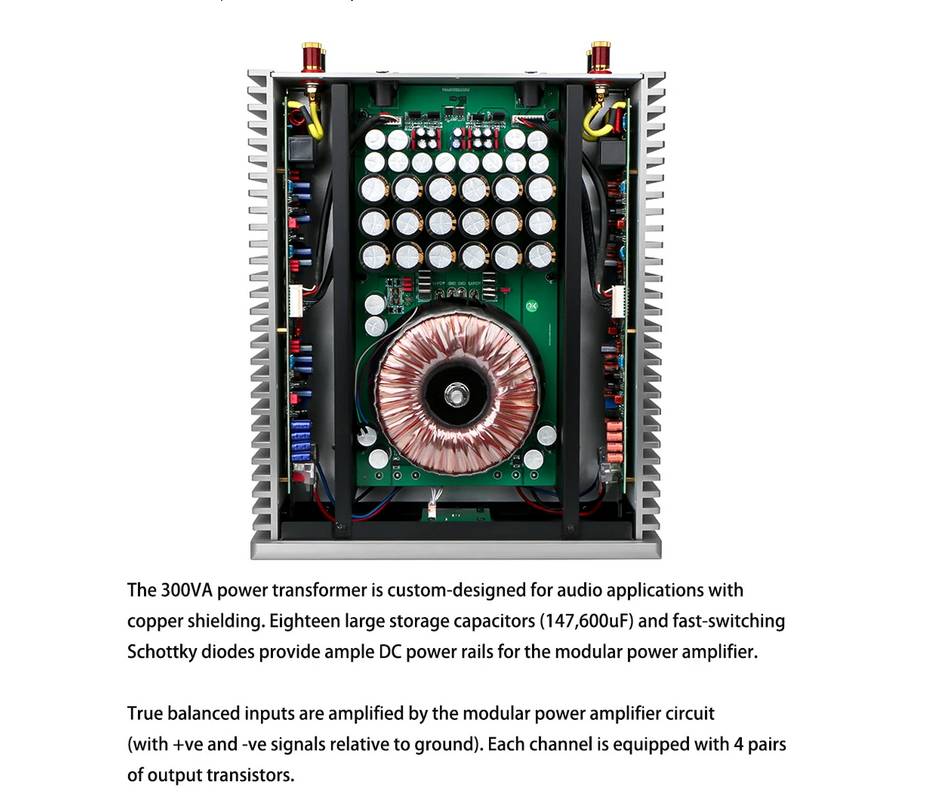

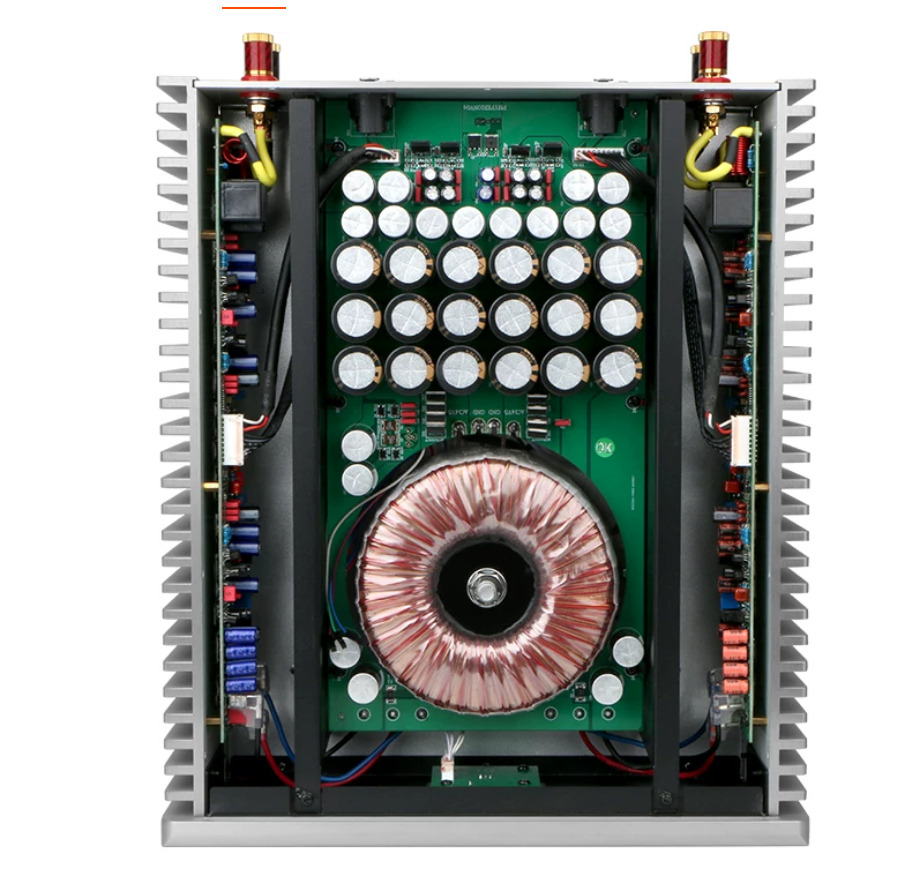

The 300VA power transformer is custom-designed for audio applications and features copper shielding. Eighteen large storage capacitors (147,600uF) and fast-switching Schottky diodes provide ample DC power rails for the modular power amplifier.
True balanced inputs are amplified by the modular power amplifier circuitry (+V and -V signals relative to ground). Each channel is equipped with four pairs of output transistors.

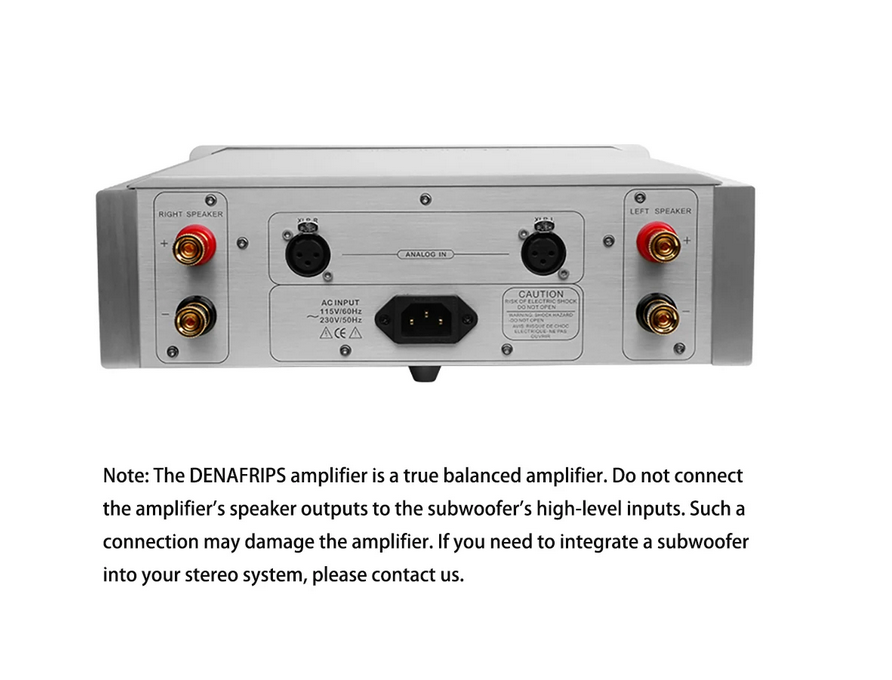

Note: DENAFRIPS amplifiers are true balanced amplifiers. Do not connect the amplifier's speaker outputs to the subwoofer's high-level inputs. Such a connection may damage the amplifier.
Input: XLR
Input Impedance: 20kΩ
Minimum Input Voltage: 1.9Vrms
Maximum Voltage Gain: 25dB
Output Power: 90W*2 (8Ω load), 120W*2 (4Ω load)
AC Power Requirements: 115V/60Hz; 230V/50Hz (auto-switching)
Total Power: <255W (8Ω); <435W (4W)
Standby Power: <0.5W
Frequency Response: 10Hz-80kHz (+1/-3dB)
Distortion: ≤0.001% (A-weighted)
Signal-to-Noise Ratio (rated): ≥120dB (A-weighted)
Signal-to-Noise Ratio (minimum): ≥110dB (A-weighted)

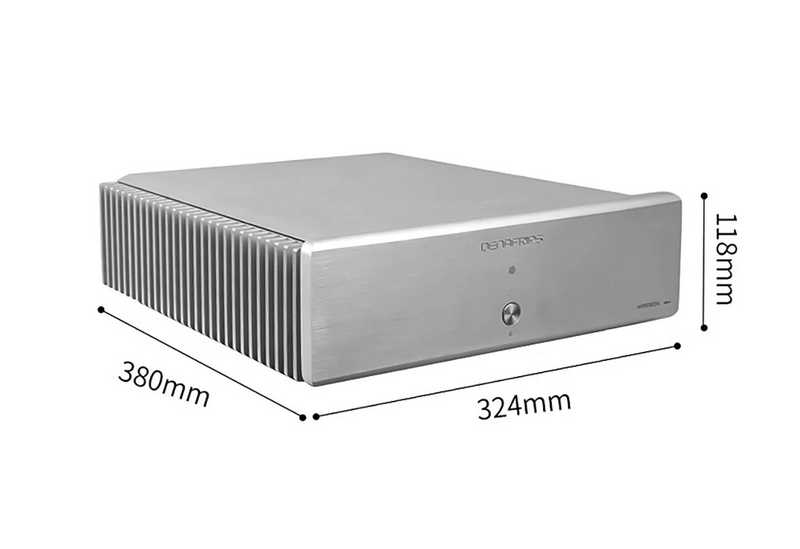

Dimensions: 324W x 380D x 118H mm (including feet)
Packaging Dimensions: 506W x 489D x 193H
Gross Weight: 17kg
