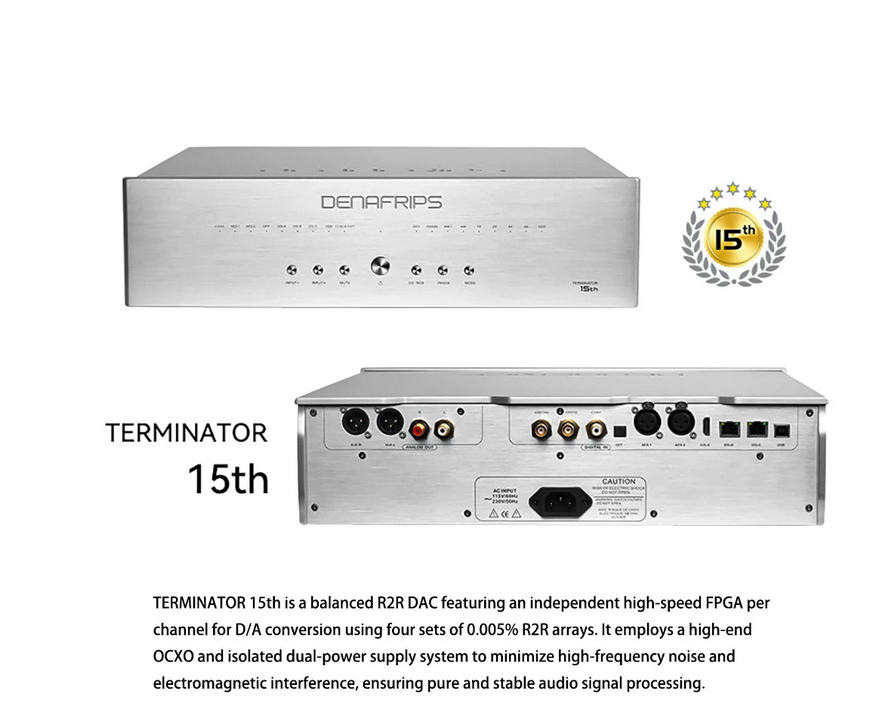

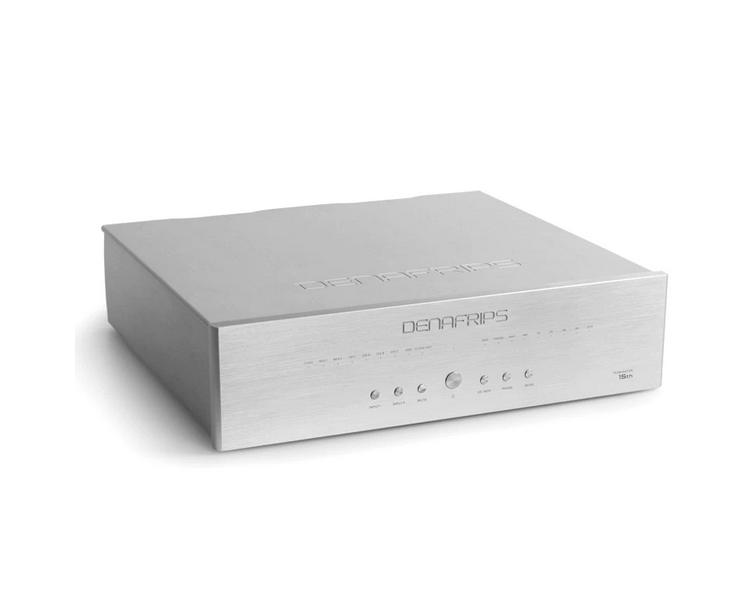

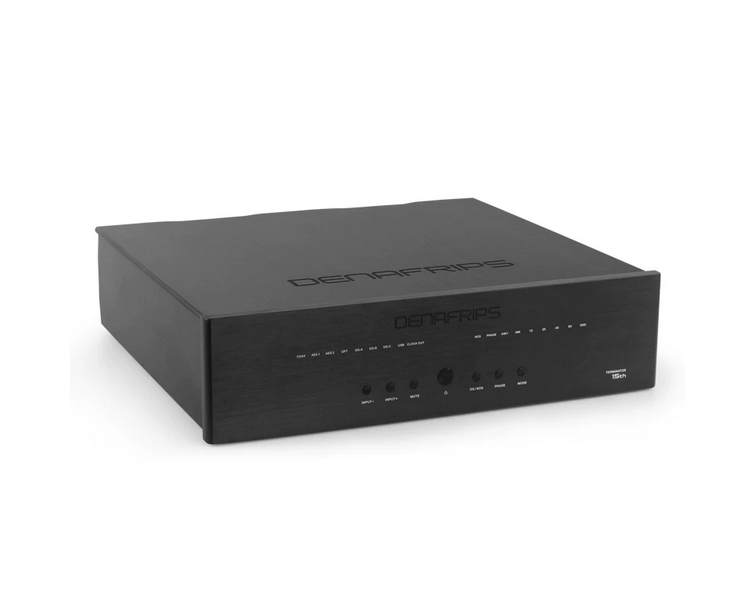

The TERMINATOR 15th is a balanced R2R DAC. Each channel features an independent high-speed FPGA and uses four 0.005% R2R arrays for D/A conversion. It utilizes high-end OCXOs and an isolated dual power supply system to reduce high-frequency noise and electromagnetic interference, ensuring pure and stable audio signal processing.
1. Digital/Analog Isolation

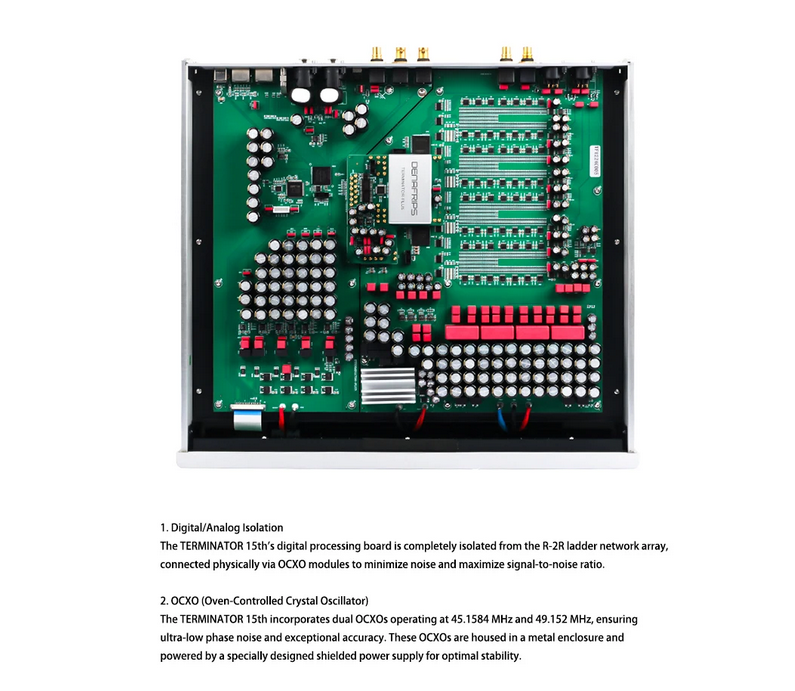

The TERMINATOR 15th's digital processing board is fully isolated from the R2R ladder network array and physically connected via an OCXO module, minimizing noise and maximizing signal-to-noise ratio.
2. Oven-Controlled Crystal Oscillator (OCXO)
The TERMINATOR 15th is equipped with dual 45.1584 MHz and 49.152 MHz OCXOs, ensuring ultra-low phase noise and excellent accuracy. These OCXOs are housed in a metal housing and powered by a specially designed shielded power supply for optimal stability.
1. The Foundation of Superior Sound Quality
A dedicated linear power supply unit is enclosed in a rugged 1.5mm-thick metal alloy housing, with an additional steel plate partition between the DAC motherboard and PSU box for enhanced EMI/EMF shielding.
2. Innovative Box-in-Box Design
This eliminates the issues of a two-box solution, highlighting Denafrips' refined design and attention to detail.
3. Premium Components

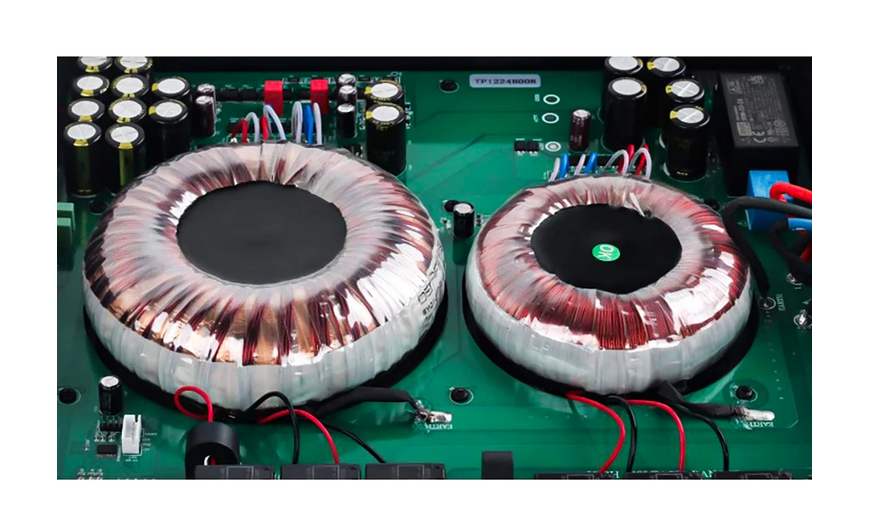

Dual O-type transformers are used for both the digital and analog sections, with ultra-low ESR and long-life storage capacitors. The multi-stage super-linear power supply ensures ultra-precise, low-ripple power delivery.
High-Quality Construction: A classic and elegant appearance features a brushed aluminum chassis.
Exquisite Design: Made from a high-purity gold, silver, and copper alloy, it features a dual O-type core AC transformer for clean power and isolated digital/analog sections for reduced noise.

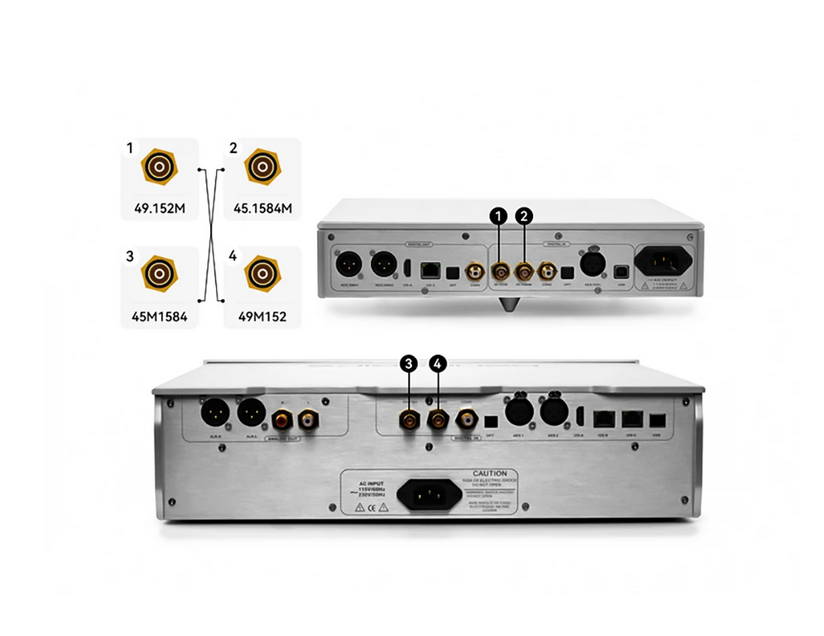

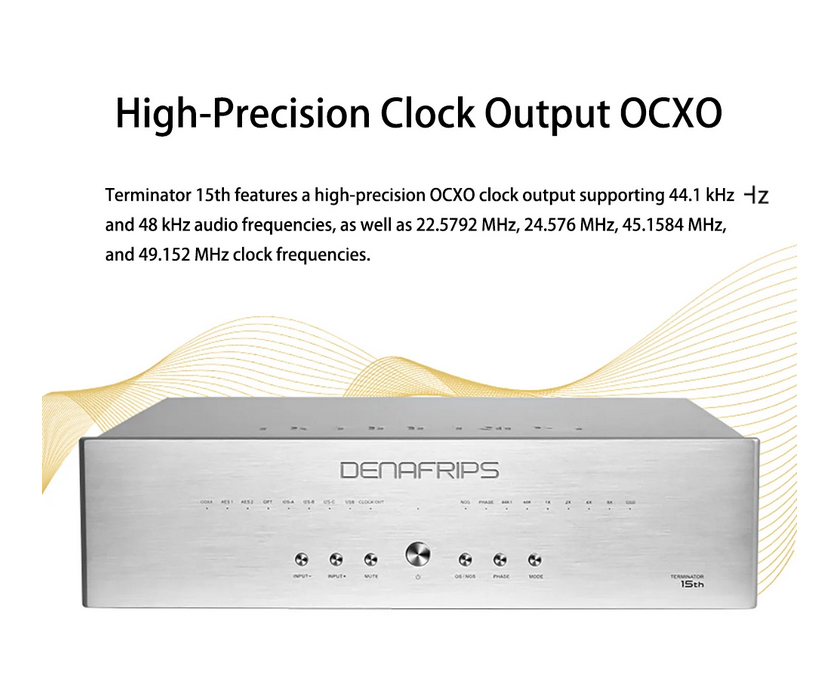

High-Precision OCXO Clock Output: Equipped with dual oven-controlled crystal oscillators (OCXOs), it delivers ultra-low phase noise and high accuracy.
Adaptive FIFO Buffer Clock Recovery: Minimizes jitter for precise digital-to-analog conversion.
R-2R DAC: Proprietary R2R+DSD architecture / Fully balanced 26-bit R2R and 6-bit DSD (32-stage FIR filter) / Precision-matched 0.005% thin-film R-2R network array
Highlights:
Packaged ultra-low-noise power supply
High-end oven-controlled crystal (OCXO)
Fully isolated digital and R-2R boards
Adaptive FIFO buffering and retiming
Highlights
USB and I2S inputs supporting DSD1024 and PCM1536
Proprietary USB audio solution based on the STM32F446 advanced AMR MCU
Windows platform license
Thesycon USB driver; no driver required for Mac and Linux
Supports dual AES/EBU inputs
Sharp/slow filter options available
12S pin configuration
I2S DSD channel switching configuration
DSD: Coaxial/AES/0pt inputs
DSD 64/2.8224 MHz (DoP)
DSD 1024/45.1584 MHz*Applicable to USB and I2S inputs only
PCM: All inputs are 24-bit/44.1, 48, 88.2, 96, 176, 4, and 192 kHz / 1536kHz. USB and I2S inputs only.

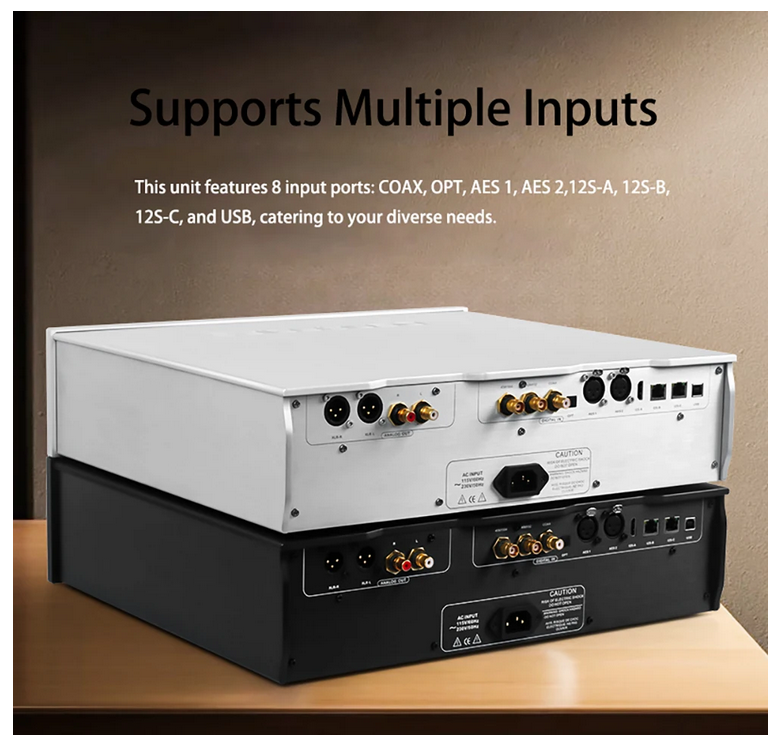

Digital Inputs:
Coaxial (via RCA)
OPT x 1
AES/EBU x2 (supports dual AES/EBU left/right channel inputs)
Digital Inputs
USB 2.0B Type
12S via HDMI LVDS
12S via RJ45 LVDS
12S via RJ45 LVCMOS
45.1584MHz/49.152MHz high-precision, low-phase noise active crystal oscillator
Analog Outputs: RCA output 2.2Vrms, 625Ω / XLR output 4.4Vrms, 1250Ω
Sampling Mode: Non-Oversampling (NOS) / Oversampling (OS)
AC Power Requirements: 115VAC 60Hz, 230VAC 50Hz
Power Consumption: ≤20W
Frequency Response: 20-80kHz (+1/-3dB)
Total Harmonic Distortion + Noise: 0.0015% (A-weighted)
Signal-to-Noise Ratio: 129dB
Dynamic Range: >132dB
Stereo Crosstalk: -120dB

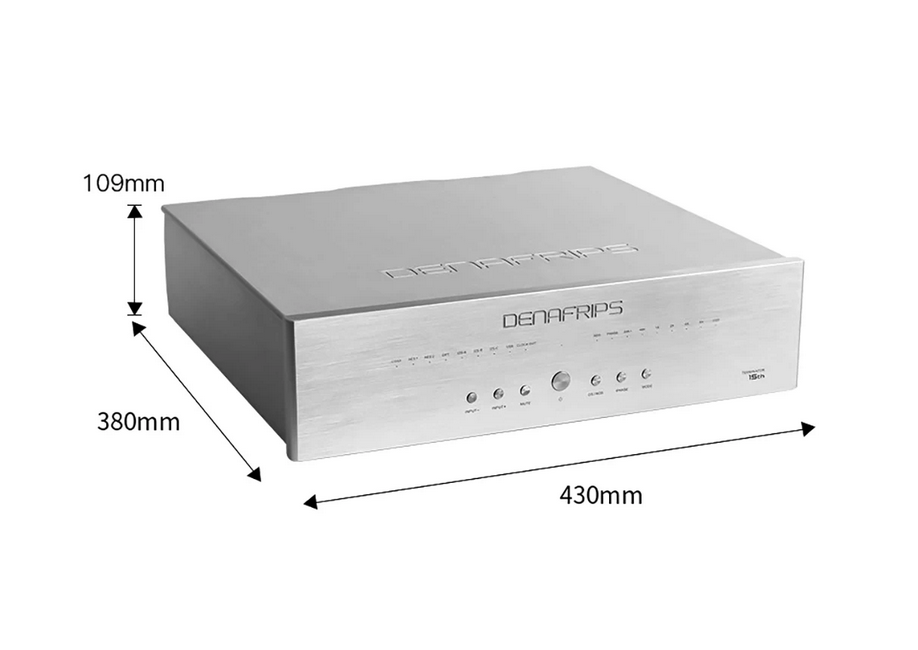

Dimensions: 430x380x109mm (including feet)
